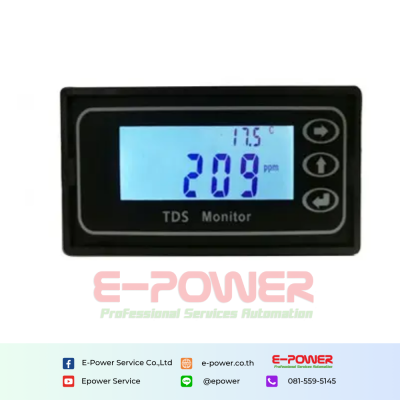

Online Conductivity TDS Monitor CM-230, TDS-230

Intelligent Conductivity Monitor/TDS monitor

Categories : JIRS Sensor , Controller , Conductivity TDS Controller

Brands :JIRS

Product description

Short Description:

Intelligent Conductivity Monitor/TDS monitor

Code: CM/TDS-230

Range: 0.5～20/200/2000 μS/cm；0～20 mS/cm (optional) , 0.25～10/100/1000 ppm
Accuracy: 1.5%(FS)
Temp. Comp.: The 25 basis, automatic temperature compensation
Operation Temp.: 0～5
Sensor: 1.0cm -1 (either 1/2 NPT sensor or 1/4 NPT sensor)
Display: 3½ Bit LCD
Current output signal: (Optional: 4-20mA, non-isolated, non-migrated)
Control output signal: Power AC 110/220V±10%, 50/60Hz

Description

Affordable industrial on-line conductivity monitor, controller, small size and low price.
Range switch over and constant check can both be freely set and adjusted through the operation component on the rear panel. Automatic temperature compensation, Wide range input temperature.

Main Technique Specifications

Function Model	CM-230	TDS-230
Range	0～20/200/2000 μS/cm; 0～20 mS/cm	0～10/100/1000 ppm
Accuracy	1.5%(FS)	1.5%(FS)
Temp. Comp.	The 25°C basis, automatic temperature compensation	The 25°C basis, automatic temperature compensation
Operation Temp.	0～50°C	0～50°C
Sensor	1.0cm^-1	1.0cm^-1
Display	3½ Bit LCD	3½ Bit LCD
Current output signal	Non isolated 4-20mA output (optional)	Non isolated 4-20mA output (optional)
Control output signal
Power	AC 110/220V±10%, 50/60Hz	AC 110/220V±10%, 50/60Hz
Working environment	Ambient Temp. 0～50°C, Relative Humidity 85%	Ambient Temp. 0～50°C, Relative Humidity 85%
Overall dimensions	48×96×100mm (H X W X D)	48×96×100mm (H X W X D)
Hole dimensions	45×92mm (H X W)	45×92mm (H X W)
Installation Mode	Panel Mounted (Embedded)	Panel Mounted (Embedded)
