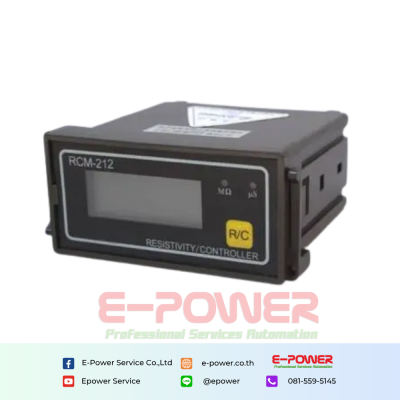

Resistivity Controller RCM-212

Categories : JIRS Sensor , Controller , Resistivity Controller

Brands :JIRS

Product description

Short Description:

Affordable industrial on-line Resistivity monitor, small size and low price
Constant check can be freely set and adjusted through the operation component on the rear panel
Automatic temperature compensation
Only monitor Resistivity value, without control and current output signal

Main Technique Specifications

Function Model	RCM-212 Resistivity Monitor
Range	0～18.2MΩ·cm　(0-1uS)
Accuracy	2.0%(FS)
Temp. Comp.	The 25°C basis, automatic temperature compensation
Operation Temp.	0～50°C
Sensor	0.05cm¹
Display	2½ Bit LCD
Current output	-
Control output	-
Power	AC 110/220V±10% 50/60Hz
Working environment	Ambient Temp. 0～50°C, Relative Humidity 85%
Dimensions	48×96×100mm(H X W X D)
Hole size	45×92mm(H X W)
Installation Mode	Panel Mounted (Embeded)
