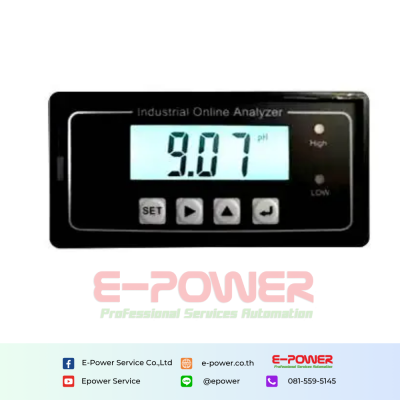

PH/ORP Controller PH,ORP-600

Categories : JIRS Sensor , Controller , PH/ORP Controller

Brands :JIRS

Product description

Short Description:

Industrial online PH/ORP Monitoring and controlling instrument
Three-point calibration function, automatic identification of calibration liquid and the error calibration
High input impedance, the adaptation of various types of PH /ORP electrode
The upper limit and low limit alarm relay control output functions, alarm return difference setup by keyboard, to form automatic closed-loop control system is more flexible and convenient
Modbus RTU RS485 output (Optional)

Main Technique Specifications

Function Model	PH/ORP-600 Single channel PH or ORP Controller
Range	0.00～14.00pH, ORP：-1200～＋1200 mV
Accuracy	PH：±0.1 pH，ORP：±2mV
Temp. Comp.	0~100, manual / automatic (PT1000, NTC 10k, RTD )
Operation Temp.	0～60(normal) , 0～100(optional)
Sensor	The composite electrode (Sewage, Pure water)
Calibration	4.00；6.86；9.18 Three Calibration
Display	LCD display
Control output signal	High and low limit alarm contact each group （3A/250 V AC）
Current output signal	Isolation,Reversible Transferable 4-20mA signal output, max circle resistance 750Ω
Communication signal	Modbus RS485, baud rate: 2400, 4800, 9600 (Optional)
Power supply	AC 110/220V±10%, 50/60Hz
Working environment	Ambient Temp. 0～50, Relative Humidity 85%
Overall dimensions	48×96×100mm (H X W X D)
Hole dimensions	45×92mm (H X W)
