Online Turbidity transmitter controller (ZS-6850 )

Categories : JIRS Sensor , Controller , TSS, DOZ, Turbidity, Free Chlorine and others

Brands :JIRS

Product description

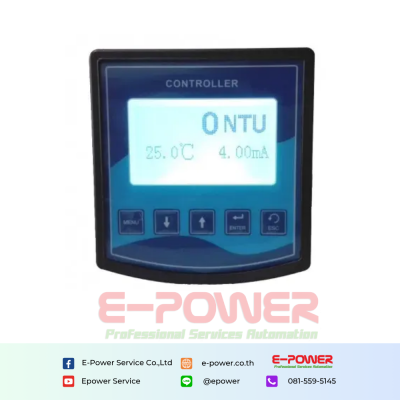

ZS-6850 Online Turbidity transmitter controller

Description

ZS-6850 online Turbidity Transmitting Controller.
Large screen liquid crystal display (LCD)
Built-in bubble elimination system (circulation), improving the measuring accuracy and stability.
Communication function (optional):RS-485 communication interface (MODBUS protocol compatible), 4 ~ 20 mA current output
corresponding Turbidity value can be set freely.
Adopting two points calibration
Watchdog function: make sure the instrument does not crash
The core parts from international famous brand.
Can restore factory Settings. Power-fail protection > 10 years

Application:

Widely used in water source quality monitoring, environmental monitoring station, municipal water treatment process, circulation cooling water, swimming pool water running management, factory aquaculture etc.

Main Technique Specifications

Model	ZS-6850
Function	Online Turbidity Transmitting Controller
Measuring Range	Circulation Type: 0-10，0-20，0-100，0-400 NTU
Measuring Range	Submerged Type: 0-500，0-2000，0-4000NTU Measuring range can order as per request
Display	Large screen LCD
Resolution	0.1%
Accuracy	±1.5% (F.S.)
Repetitive	±1.0%
Analog output	load <750Ω (4-20mA)
Switched output	2 Relays, 3A, 220V AC/24V DC
Power	10W
Power	AC 220V±10%, 50/60Hz
Working environment	Ambient Temp. 0-60°C, Relative Humidity 90% or less
Dimensions	96×96×115mm (H X W X D), 0.8kgs
Hole size	91×91mm (H X W)
Installation Mode	Panel Mounted
