Online total Suspended Solids controller (TSS-6850)

Categories : JIRS Sensor , Controller , TSS, DOZ, Turbidity, Free Chlorine and others

Brands :JIRS

Product description

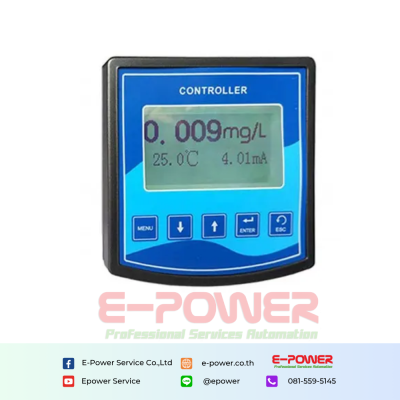

TSS-6850 Online total Suspended Solids controller

Description

TSS-6850 online total Suspended Solids Transmitting Controller.
Large screen liquid crystal display (LCD)
Built-in bubble elimination system (circulation), improving the measuring accuracy and stability.
Hysteresis set arbitrary function, avoid frequent switch relay action,
Communication function (optional):RS-485 communication interface (MODBUS protocol compatible), 4 ~ 20 mA current output corresponding. Turbidity value can be set freely.
Adopting two points calibration
Watchdog function: make sure the instrument does not crash
The core parts from international famous brand.
Can restore factory Settings. Power-fail protection > 10 years

Application:

Widely used in water source quality monitoring, environmental monitoring station, municipal water treatment process, circulation cooling water, swimming pool water running management, factory aquaculture etc.

Main Technique Specifications

Function	TSS-6850
Model	Online total Suspended Solids Controller
Measuring Range:	0-2000mg/L, 0-30.000mg/L Throw in type
Display	Large screen LCD
Resolution	1mg/L, 0.1°C
Accuracy	±1.0% (FS), ± 0.5°C
Repetitive	±1.0%
Analog output	load <750Ω (4-20mA)
Switched output	2 Relays, 3A/220V AC, High/Low relay alarm, Hysteresis set arbitrary
Power	AC 220V±10%, 50/60Hz
Working environment	Ambient Temp. 0-60°C, Relative Humidity 90% or less
Dimensions	96×96×156mm (H X W X D), 0.9kgs
Hole size	91×91mm H X W)
Installation Mode	Panel Mounted
Protection grade	IP 65
