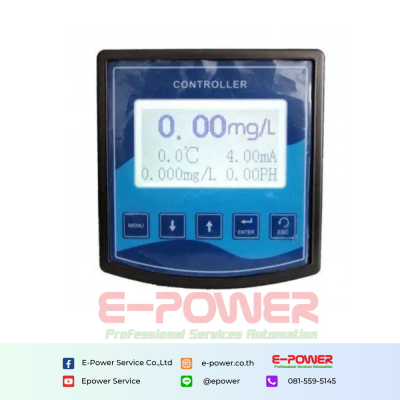

Online Free Chlorine controller (CL-6850)

Brands :JIRS

Product description

CL-6850

Industrial online free chlorine, PH, HOCL and Temperature analyzer

Character & Application:

Industrial online Free chlorine and HOCL, PH monitoring and controlling analyzer.
Measure Free chlorine, Hypochlorous acid (HOCl), PH and Temperature value.
Widely used in drinking water, bottling water, electricity, medicine, chemical, food, pulp &paper, swimming pool, water treatment industry.

Main Technique Specifications

Model	CL-6850
Range	Free chlorine: 0-20.00 mg/L(ppm) Hypochlorous acid (HOCl): 0-10.00 mg/L(ppm) PH value: 0-14pH, Temperature: 0-60°C
Accuracy	Free chlorine: ±1% or ±0.01 mg/L Hypochlorous acid (HOCl): ±1% or ±0.01 mg/L PH value: ±0.02pH, Temperature: ±0.5°C
Temp. Comp	Manual/automatic pH compensation feature (0-14) and temperature compensation (0~60°C)
Electrode	Free chlorine Sensor, PH sensor
Display	LCD display
Operation Temp.	0 ~ 60°C
Current output	Isolation 4 ~ 20mA, (RS485 optional)
Control output	ON/OFF High limit, low limit relay
Power	AC 110/220V±10% 50/60Hz, DC 24V, DC 12v
Working environment	Ambient Temp: 0 ~ 50°C, Relative Humidity: 90%
Overall dimensions	96×96×115mm(H×W×D)
Hole size	91×91mm(H×W)
Installation Mode	Panel mounted(embedded)
Protection grade:	IP 65
