Online Salinity transmitting controller (YD-6850)

Categories : JIRS Sensor , Controller , Acid, Alkaine, Salinity Controller

Brands :JIRS

Product description

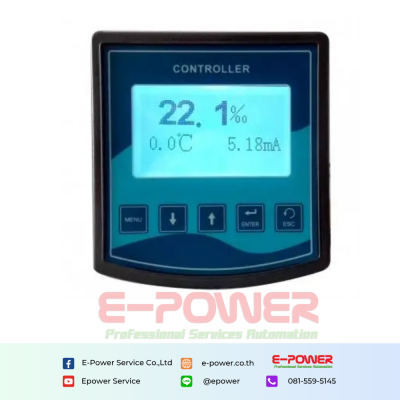

YD-6850 Online Salinity transmitting controller

Description:

YD-6850 online Salinity Transmitting Controller.
Large screen liquid crystal display (LCD)
Screen displays alarm state and at the same time accompanied by switch ON/OFF signal output.
Automatic temperature compensation function: 0 ~ 100
Communication function (optional):RS-485 communication interface (MODBUS protocol compatible), 4 ~ 20 mA current output corresponding Salinity value can be set freely.
Watchdog function: make sure the instrument does not crash
Can restore factory Settings. Power-fail protection > 10 years

Application:

Widely used in thermal power, chemical fertilizer, metallurgy, environmental protection, pharmaceutical, biochemical, food and water in the solution Salinity value continuous monitoring.

Main Technique Specifications

Model	YD-6850
Function	Online Salinity transmitting controller
Measuring Range	0-300
Resolution	0.1
Accuracy	±2.0 %(FS)
Display	Large screen LCD
Sensor	3/4" NPT PSF (Polysulfone) material with 5m cable
Temp. Compensation	NTC 10K, 0.0°C-100.0 °C Automatic temperature compensation
Current output	photoelectric coupler isolation protection 4 ~ 20 ma output signal
Control output	two groups of ON/OFF relay contacts (not source port), divided into Salinity, photoelectric isolation temperature control signal output.
Contact capacity	10A/220V AC (Resistive Load)
Output load	load <750Ω (4-20mA)
Power	AC 220V±10%, 50/60Hz
Working environment	Ambient Temp. 0-60°C, Relative Humidity 90% or less
Dimensions	96×96×168mm(H X W X D), 0.8kgs
Hole size	92×92mm H X W)
Installation Mode	Panel Mounted
Protection Grade	IP 65
