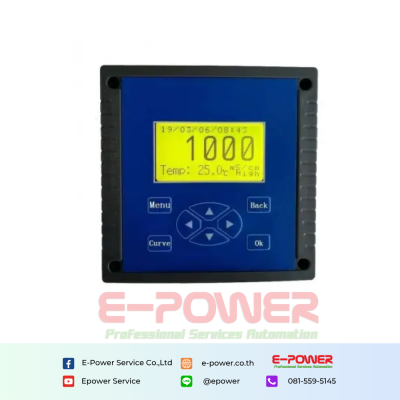

ABC-6850 Online Acid-base Concentration Meter

Categories : JIRS Sensor , Controller , Acid, Alkaine, Salinity Controller

Brands :JIRS

Product description

Description:

The instrument is a new generation of tiny high-grade instrument in our company. It is featured with English display, English menu operation, high intelligence, multiple functions, high measuring performance and strong environmental suitability and so on.

Main Technique Specifications

Model	ABC-6850
Function	Online Acid-base concentration Meter
Measuring Range	HNO(0 ~ 25.00)% HSO(0 ~ 25.00)% HCL (0 ~ 20.00)%(25 ~ 40.00)% NaOH(0 ~ 15.00)%(25 ~ 40.00)% HSO(92 ~ 100.00)% KOH(0 ~ 30.00)% NaCL(0 ~ 20.00)%
Display	128×64 lattice LCD, displayed in English
Accuracy	±2%F.S
Resolution	0.01%
Repeatability	< 1%
Temperature sensors	Pt1000
Temp. compensation range	0 ~ 60 °C
Temp. of water sample	5 ~ 50 °C
Ambient temperature	5 ~ 50 °C
Power supply	AC 85 ~ 264 V Frequency: 45 ~ 65 Hz
Power	15W
Overall dimension	145 mm×120 mm×150 mm
Hole size	138 mm×138 mm
Weight	0.54kg
Data output	(0 ~ 10) mA, (0 ~ 20) mA, (4 ~ 20) mA (optional), 485 output
Alarm relay	2 normally open contacts are optional, AC220V 3A / DC 30V 3A
Protection grade	IP65
Electrode installation mode	Flow type / submerged/flanged (special installation mode, designed by negotiation)
Controller installation Mode	Panel Mounted (Embedded) / Wall / rack-mounting mounted
