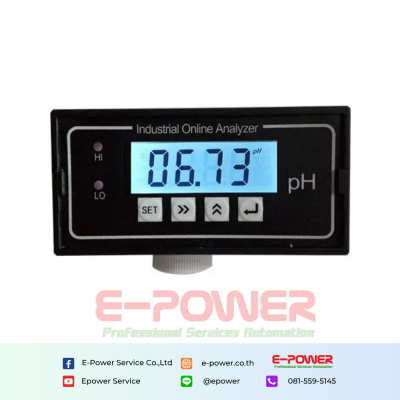

PH/ORP -600 Online PH/ORP Meter With Sensor

Brands :JIRS

Product description

PH/ORP- 600 PH/ORP Meter
Character & Application:

Industrial online PH/ORP Monitoring and controlling instrument.
Three-point calibration function, automatic identification of calibration liquid and the error calibration
High input impedance, the adaptation of various types of PH /ORP electrode
The upper limit and low limit alarm relay control output functions, alarm return difference setup by keyboard, to form automatic closed-loop control system is more flexible and convenient.
Modbus RTU RS485 output
Widely used for water treatment, environmental protection, Industrial waste water, chemical process detection and control of PH value.

Parameters

Model	PH/ORP-600 - Single channel PH or ORP Meter
Range	0.00 ~ 14.00pH, ORP: -1200 ~ + 1200 mV
Accuracy	pH:±0.1 pH , ORP: ±2mV
Temp. Comp.	0-100 , manual / automatic ( PT1000 , NTC 10k, RTD )
Operation Temp.	0 ~ 60(normal) , 0 ~ 100(optional)
Sensor	The composite electrode (Sewage, Pure water)
Calibration	4.00; 6.86; 9.18 Three Calibration
Display	LCD display
Current output signal	Isolation,Reversible Transferable 4-20mA signal output, max circle resistance 750Ω
Control output signal	High and low limit alarm contact each group (3A/250 V AC)
Communication signal	Modbus RS485, baud rate: 2400, 4800, 9600 (Optional)
Power supply	AC 110/220V±10%, 50/60Hz
Working environment	Ambient Temp. 0 ~ 50, Relative Humidity 85%
Overall dimensions	48×96×100mm (H X W X D)
Hole dimensions	45×92mm (H X W)
