RO system Controller RO-PLC

Categories : JIRS Sensor , RO System Controller

Brands :JIRS

Product description

Character & Application:
Reverse osmosis process controller showing by small flow chart.
The typical operation modes of various medium and small reverse osmosis systems, adopts high-performance single chip microcomputer technology, easy to operate and technology is mature.

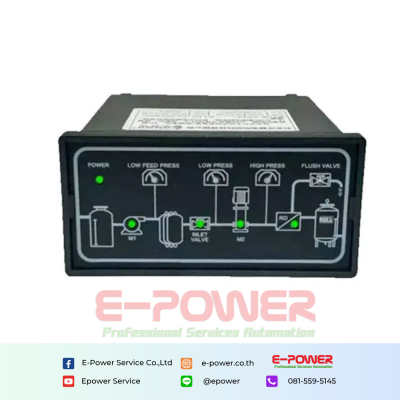

The control panel visually displays the operation status of the system by visual flow chart with LED indication lamp embedded.
Fault alarm and control output instruction function.
RO controller operates in a five-in-four-out way.

Main Technique Specifications

Model	RO-PLC
RO collecting point	No water protection, low pressure protection, high pressure protection, water level protection, external operation
RO controlling point	Inlet water valve, flush valve,raw water pump, high pressure pump
Flush way	High pressure flush, low pressure flush
Display	RO flow chart

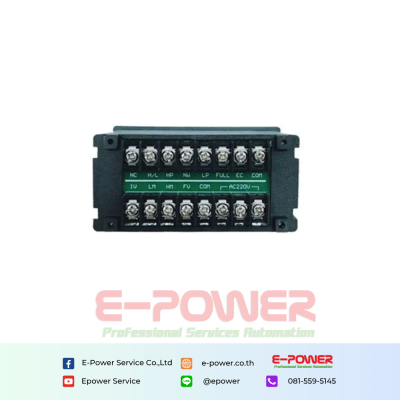

Electric contact	ON single contact relay, dry contact (on power) inside output
Contact capacity	AC 250V/3A Max ; AC 115V/10A Max
Power	AC 110V/220V (±10%)
Working environment	Ambient Temp. 0 ~ 50°C, Relative Humidity 85%
Dimensions	48×96×100mm(H X W X D)
Hole size	45×92mm (H X W)
Installation Mode	Panel Mounted (Embeded)
