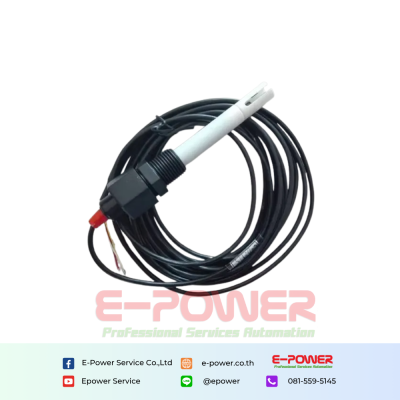

Conductivity, TDS, Resistivity sensor CR-102P

Categories : JIRS Sensor , Sensors , Conductivity, Tds, Resistivity Sensor

Brands :JIRS

Product description

Short Description:

1. Easy to use and stable performance.
2. With NTC 10K Thermister.
3. Adopt ABS engineering plasticl, has strong anti-acid and anti-alkaine character.

Technical Specifications

Measuring range	0-200uS, 0-2000us, 0-20mS, 0-10/100/1000ppm	Body main material	ABS +Pt. black
Constant	1.0cm-1	Electrode structure	Bipolar
Temp. Compensation	NTC 10K	Response time	5sec
Temp. Range	0-60°C	Connect dimension	1/2" NPT thread
Pressure range	0-0.6mPa	Cable length	5m or as per request
Cable join way	Pin or BNC connector	Installation way	Piping or Submersible

Wire Connection
White wire: Signal +
Black wire: Signal -
Yellow wire: Temp. +
Red wire: Temp -

Applications
Widly used for industrial water, tap water, cooling water, sewage water treatment industry conductivity measure.
