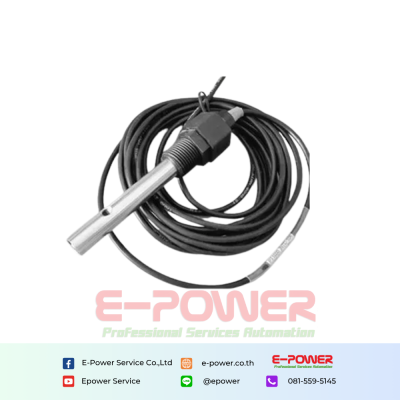

Conductivity, TDS, Resistivity sensor CR-102S

Categories : JIRS Sensor , Sensors , Conductivity, Tds, Resistivity Sensor

Brands :JIRS

Product description

Short Description:

1. Easy to use and stable performance.
2. With PT100, PT1000, NTC 10K Thermister.
3. Adopt S.S.316L material and Titanium alloy material, has strong anti-acid and anti-alkaine character.

Technical Specifications

Measuring range	0-20/200/2000us, 0-20mS,0-200mS, 0-10/100/1000ppm	Body main material	Stainless steel 316L, Titanium alloy
Constant	0.01, 0.1, 1.0, 10.0cm-1	Electrode structure	Bipolar
Temp. Compensation	PT1000, PT100, NTC 10K	Response time	5sec
Temp. Range	0-60°C	Connect dimension	1/2" NPT thread or flanged
Pressure range	0-0.6mPa	Cable length	5m or as per request
Cable join way	Pin or BNC connector	Installation way	Piping or Submersible

Wire Connection
White wire: Signal +
Black wire: Signal -
Yellow wire: Temp. +
Red wire: Temp -

Applicaions
Widly used for industrial water,tap water, cooling water,boiler circulation water,pure water etc. conductivity measure
