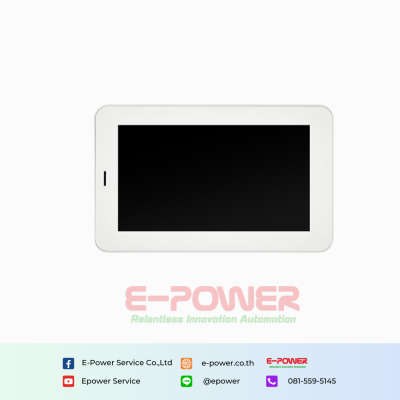

Rika RK600-07C Data Logger of Automatic Weather Station
Product description
Download
PRODUCT DESCRIPTION
RK600-07 Data Logger with data acquisition, storage, transmission and management, and other functions, is the core component of automatic weather station, which can connect 32 parameters at the same time, has the settings and color LCD display, can communication with sever or cloud via cable or wireless connection, provide communication protocol, convenient for secondary development.
DEVICE SPECIFICATIONS
| Item | Details |
|---|---|

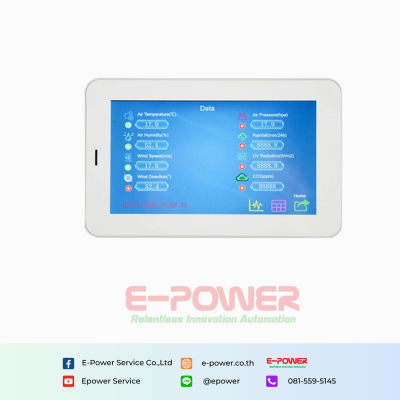

| Display | 7" color touch screen with backlight |
| resolving power | 1024*600 |
| Touch type | Resistive type |
| Screen sleep | Support |
| Backlight adjustable | Support |
| Communication status indication | Support |
| Internal storage | 4GB+512M |

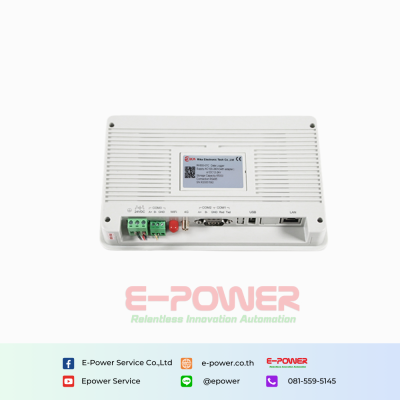

| Communication interface | COM1:RS232/COM2:RS485/COM3:RS485 |
| network | Ethernet (standard), 4G, WIFI ,LoRaWan(optional) |

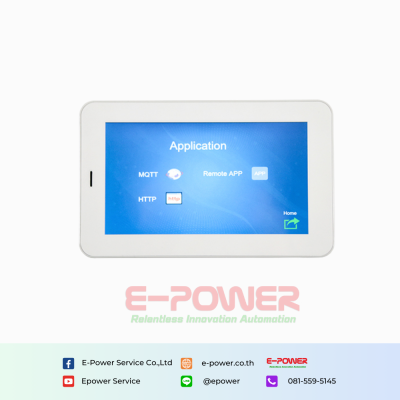

| Communication protocol | Modbus-Rtu、 Modbus-TCP、 HTTP、 MQTT |
| Supply | DC12-24V, AC100-240V (adapter) |
| Measurement parameters | 32 max |
| Recording interval | 1-240min settable |
| U_disk download | Support |
| Relay output | customized |
| Average consumption | <7W |
| CPU | Quad core A7 processor |
