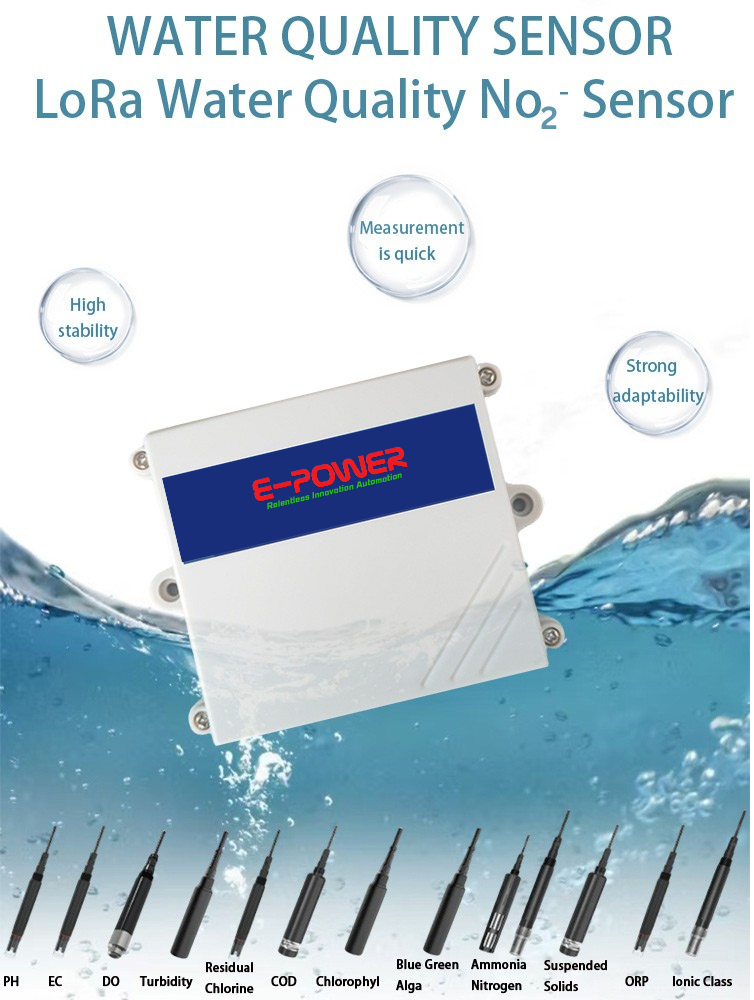

LoRa Water Quality NO2- Ion Sensor

LoRa Water Quality NO2- Ion Sensor can wirelessly measure the content of nitric root ions in water.

Categories : EPS Sensor , LoRaWAN Sensor

Brands :EPS

Product description

PRODUCT FEATURES

This sensor can adjust the measurement according to temperature changes, no matter whether it is hot or cold, it is not affected by temperature, and the measured data is more reliable.
Because of the automatic temperature compensation function, it is not afraid of the surrounding environment changing, and can work stably in different environments.
Compared with those that do not have this function, it has a much higher measurement accuracy and can more accurately measure ion concentration.
It and LoRaWAN collector connection is very simple, with the aviation connector on the line, the connector connection is stable, signal transmission is stable.
After being connected, it can communicate wirelessly, without wires, and the data can be transmitted quickly, which is convenient and efficient.
Whether industrial waste water meets the standard, whether surface water is dry, whether drinking water can be safe to drink, how the sea water is, and controlling ion concentration in industrial production can be used to test and analyze.

PRODUCT PARAMETERS

Power Supply	12/24VDC
Weight	150g
Operating Temperature	0~40
Measuring Range	0-100mg/L, 0-1000mg/L(default) Ionic sensors are more susceptible to interference from other ions in the water and can easily cause membrane head failure. Please purchase with caution !
Measurement Error	±5%FS (25°C)
Resolution Ratio	0-100mg/L: 0.01mg/L 0-1000 mg/L: 0.1mg/L
Temperature measurement range	0~50,Resolution Ratio:0.1°C (When manually compensating for temperature, it is set to 25 by default.)
Probe usage cycle	3-6 months
Pressurization	0.6Mpa
Transmitter Line length	Default 5m (other lengths can be customized)
Frequency	CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4
Mode	OTAA Class A/C
Reporting cycle	5 min(Default )
Communication Protocol	LoRaWAN,LoRa TDMA Networking
Equipment information (Reference)	AppEUI: 0000000000000001 DevEUI: aaaa202404150001 AppKey: 00001111222233334444555566667777 MAC Version: LoRaWAN 1.0.3

Product Applications

1. High sensitivity: can be sensitive to very small nitrite ion concentration changes.

2. Accurate measurement: giving high-precision nitrite ion content data.

3. Efficient response: nitrite detection results can be output in a short time.

4. Strong anti-interference: effectively eliminate the interference of other substances on the detection.

5. Good stability: long-term maintenance of stable detection performance in complex environments.

6. Wide adaptability: can work with a variety of water quality monitoring equipment.
