LoRa wired Ethernet terminal | gateway

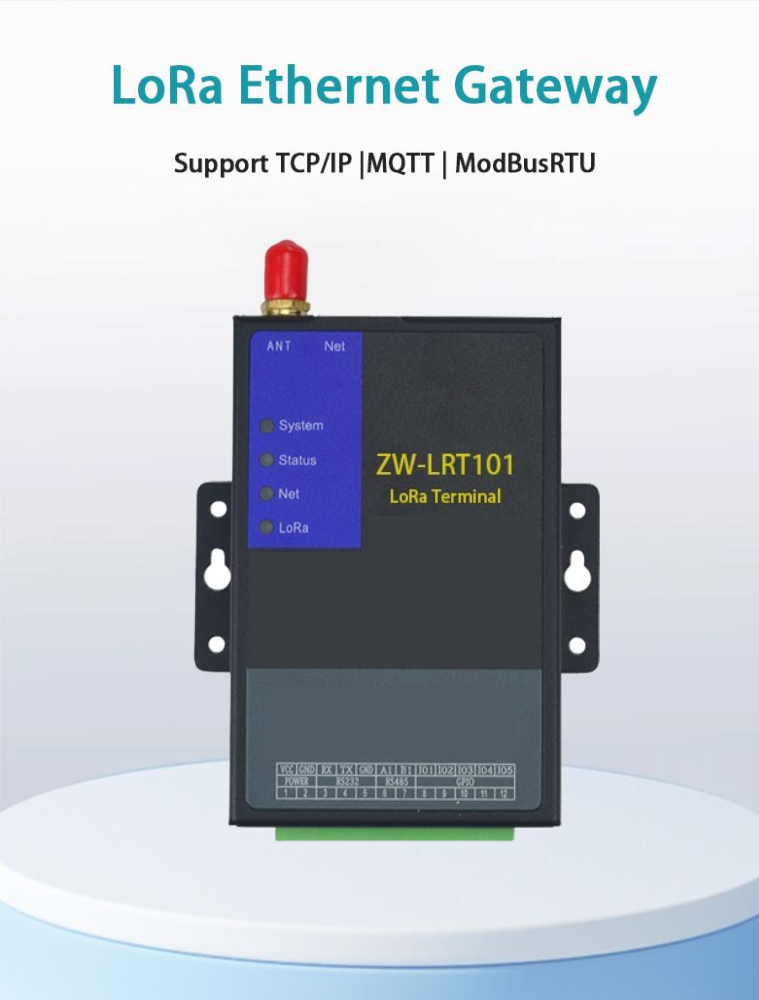

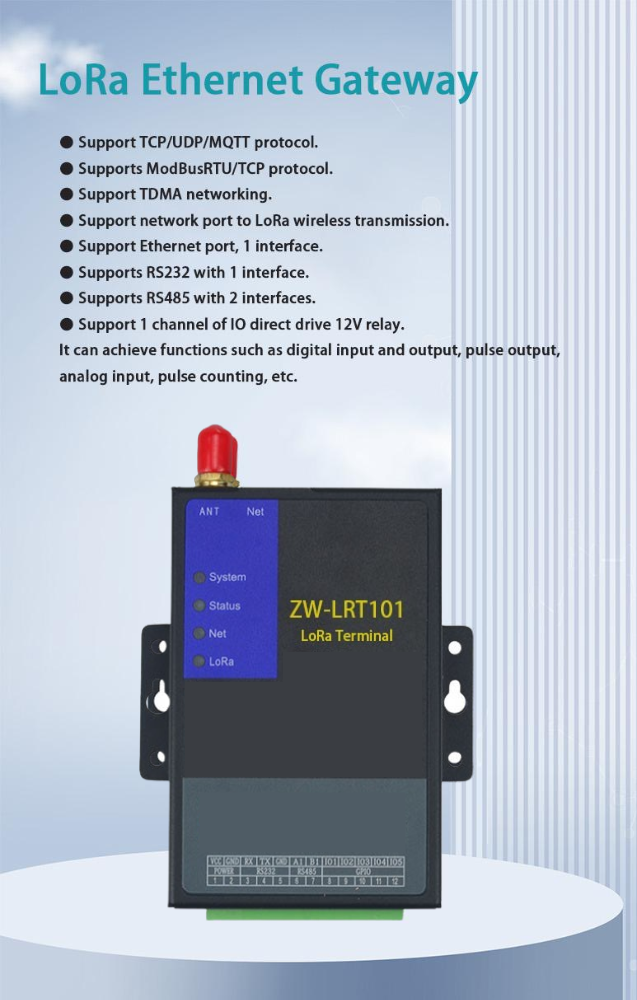

ZW-LRT101 is a LoRa gateway for wired Ethernet, supporting TCP/UDP and TDMA networking.

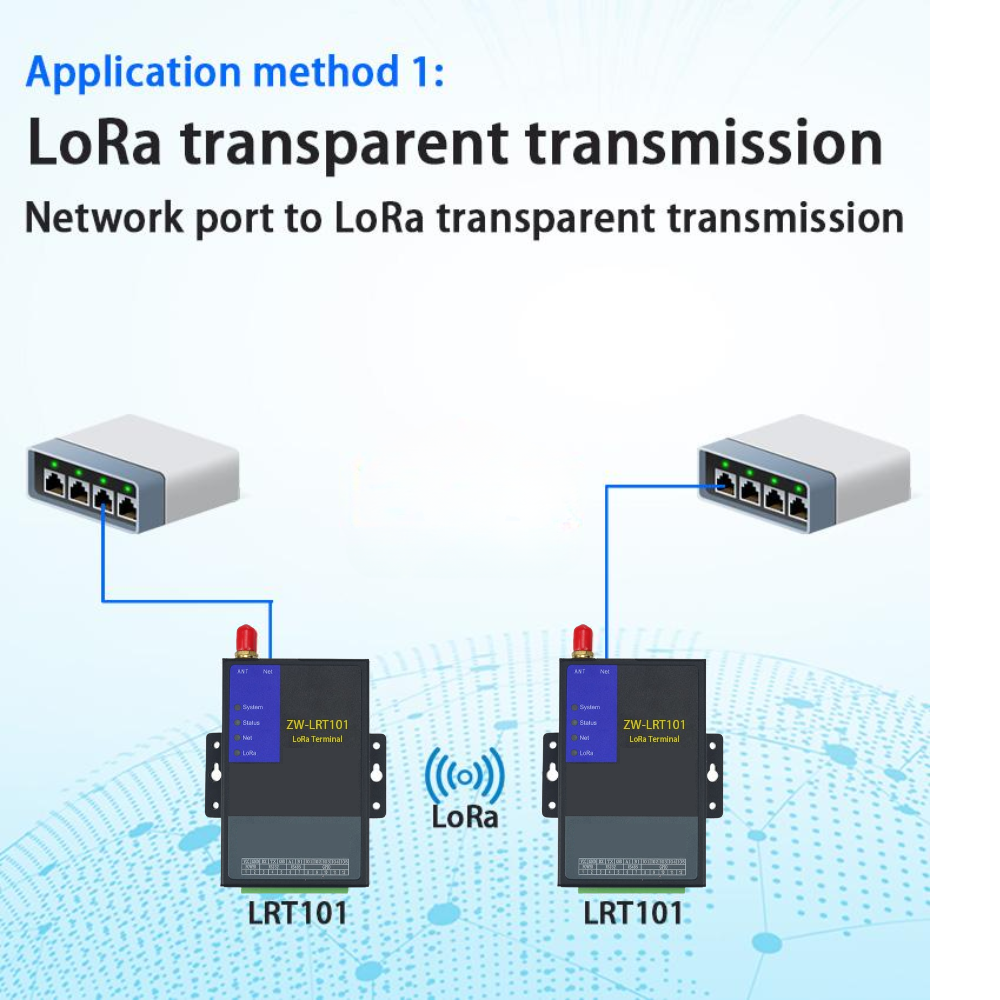

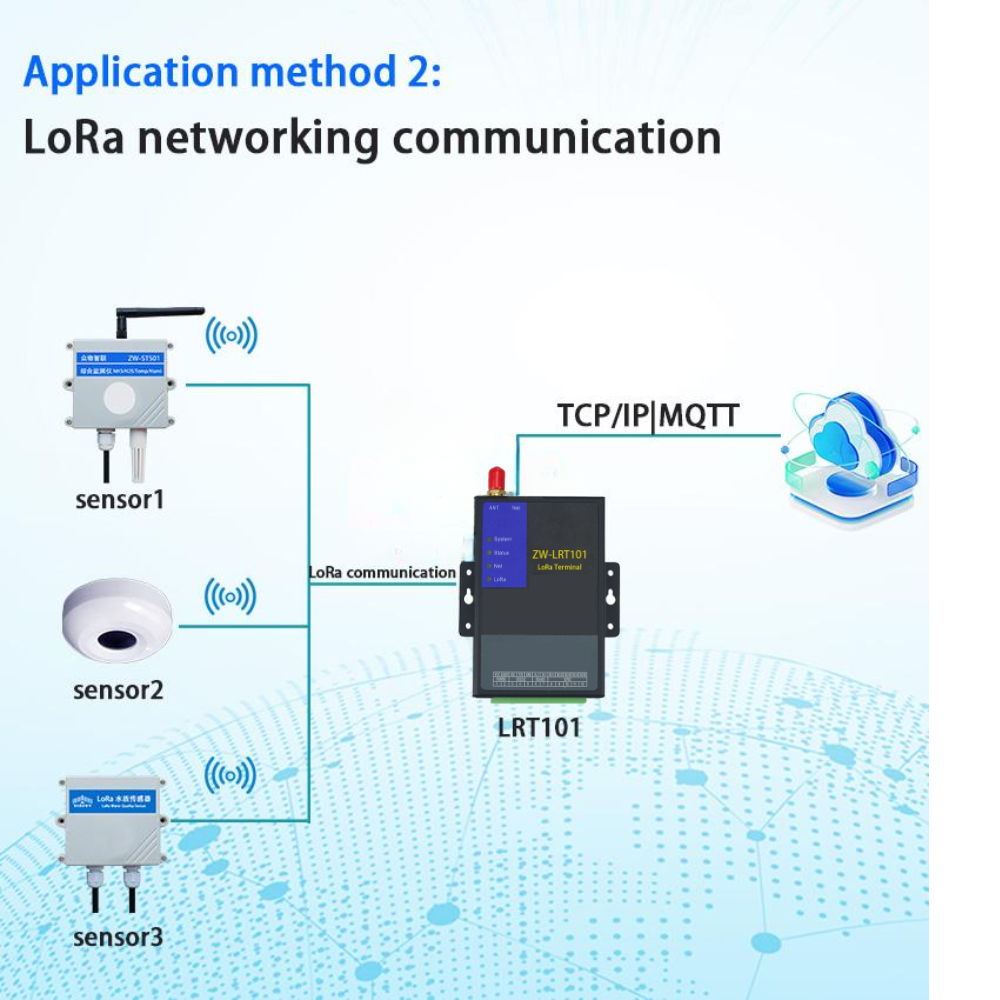

The LRT101 LoRa Ethernet gateway manages the communication of LoRa terminals in this area, and connects the LoRa terminal data in this area to the server through Ethernet TCP or UDP. ZW-NR200 provides RS232 and RS485 interfaces, which can directly connect to serial devices and achieve data transparent transmission; It can achieve functions such as digital input and output, pulse output, analog input, pulse counting, etc.
This product is widely used in the M2M industry in the IoT industry chain, such as remote meter reading, smart cities, smart factories, smart buildings, smart firefighting, smart parking, smart homes, industrial control wireless transmission, and other fields.
Detailed Parameter
| CPU | Industrial grade 32-bit CPU |
| Communication frequency band | 433MHz, 470MHz (470-510), 868MHz (862-870), 915MHz (902-928) |
| Communication distance | Indoor/Urban:3km |
| Outdoor/Sight Distance:6km | |
| Transmission power | 18dBm(±1dBm) |
| Theoretical communication rate | 6-level adjustable:0.3, 0.6, 1.0, 1.8, 3.1, 5.5Kbps |
| Sensitivity | SF=7,The receiving sensitivity is=-125.5dBm |
| SF=10,The receiving sensitivity is=-135dBm | |
| SF=12,The receiving sensitivity is=-140dBm | |
| Serial port | 1xRS232 |
| 1xRS485 | |
| Pilot lamp | Equipped with communication, status, and power indicator lights |
| Power interface | Terminal interface, built-in power reverse protection and overvoltage protection |
| Standard power supply | DC 12V/0.5A |
| Ethernet port | 10/100M |
| Supports TCP/UDP/MQTT protocol | |
| Power supply range | DC 5~28V |
| Current | Standby: 8mA@5 VDC |
| Receive: 42mA@5 VDC | |
| Sending: 210mA@5 VDC | |
| Housing | Metal shell, protection level IP30 |
| External dimensions | 91x58.5x22 mm(Excluding antennas and mounting components) |
| operation temperature | -35~+75°C |
| Storage temperature | -40~+85°C |
| Relative humidity | 95%(No condensation) |
| Software specifications | Supporting self-developed networking protocols based on TDMA, FDMA, CDMA, and frequency modulation technologies |
| Supports standard ModBusRTU protocol and ModBusTCP protocol |
