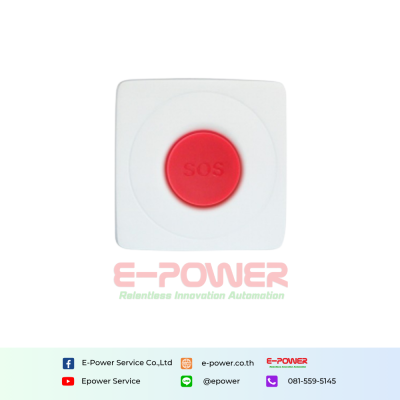

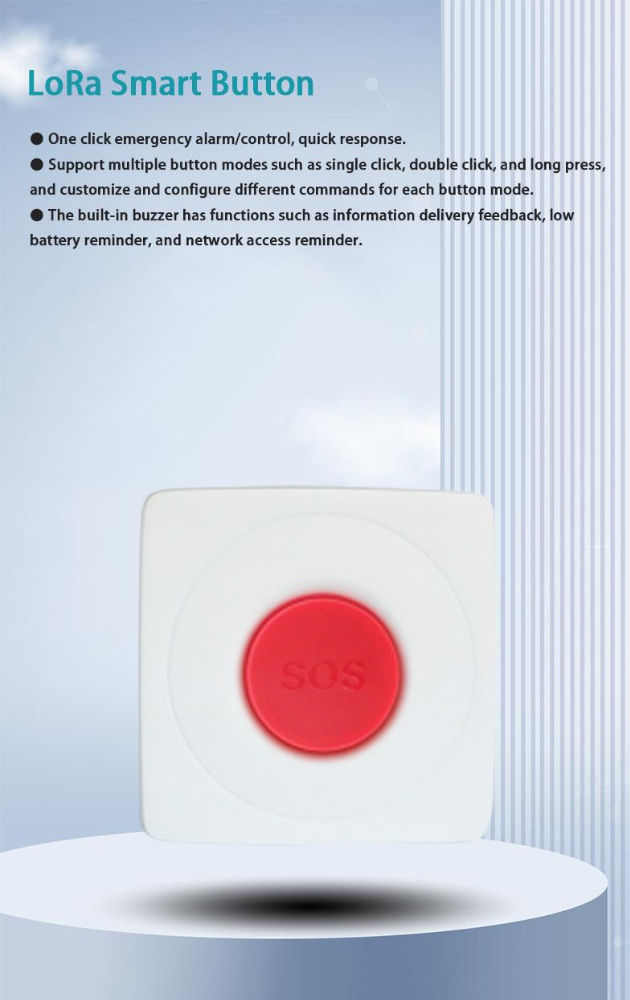

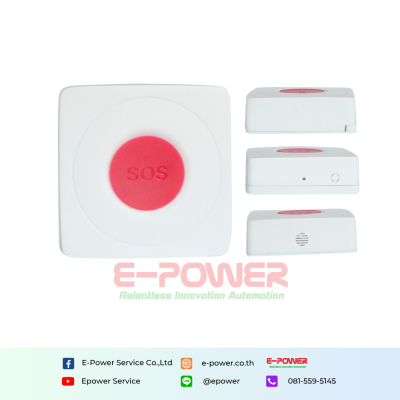

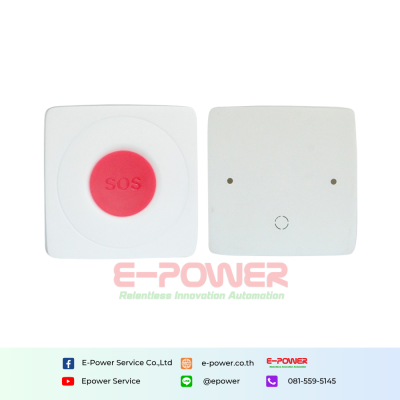

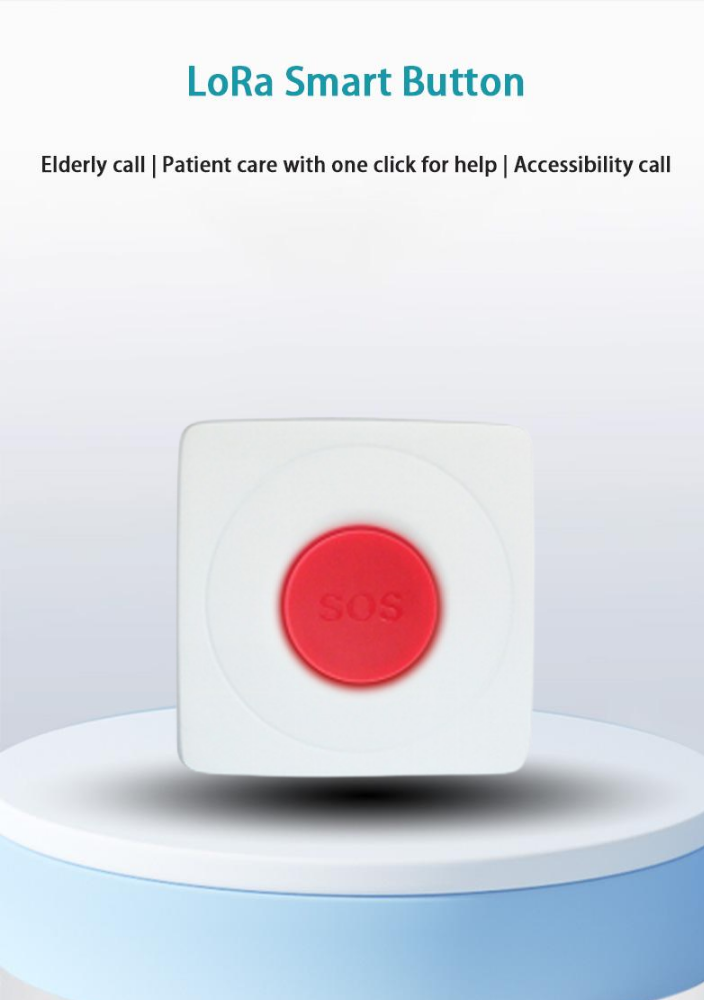

LoRa one click alarm
The ZW-ST801 SOS distress terminal is a product of LPWAN (Low Power Wide Area Network). Based on LoRaTM spread spectrum modulation technology, terminals can communicate over ultra long distances. Manually press the red button to immediately trigger an alarm signal to the monitoring platform, making it easier for monitoring personnel to quickly take rescue measures. Built in high-capacity battery, no wiring required, simple construction, and cost reduction.
Product description
The ZW-ST801 SOS distress terminal is a product of LPWAN (Low Power Wide Area Network).

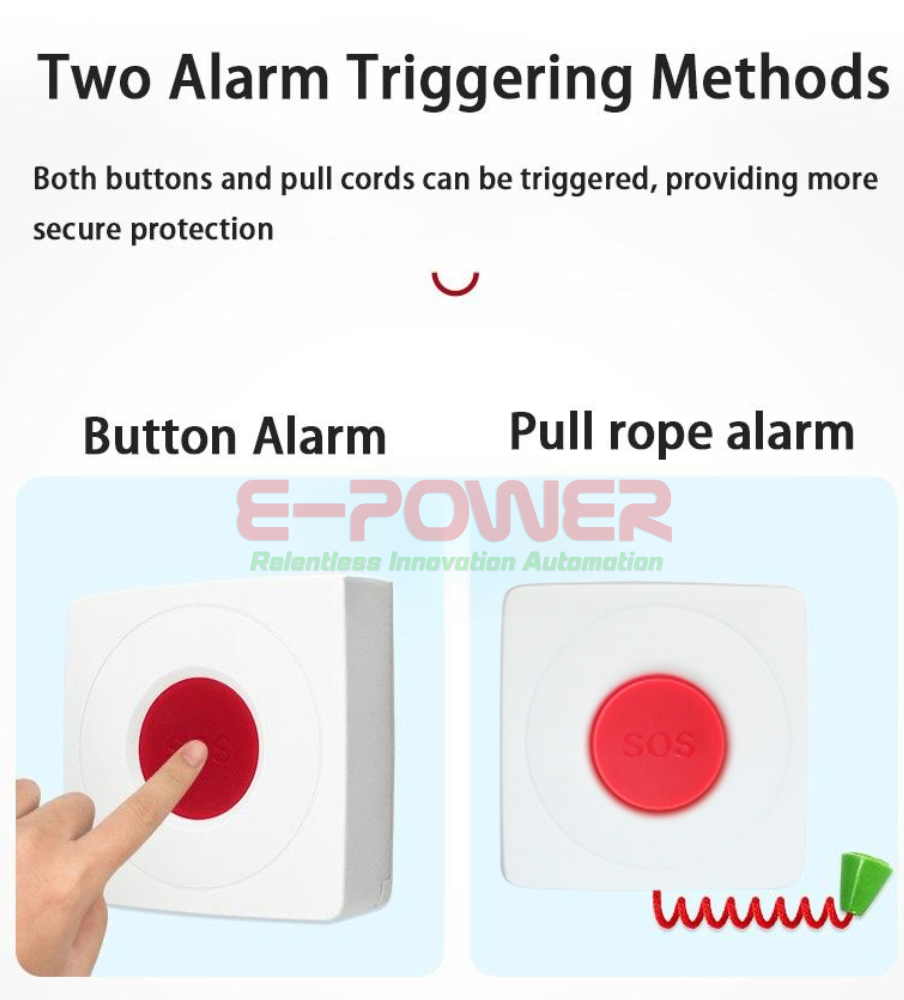

Based on LoRaTM spread spectrum modulation technology, terminals can communicate over ultra long distances. Manually press the red button to immediately trigger an alarm signal to the monitoring platform, making it easier for monitoring personnel to quickly take rescue measures. Built in high-capacity battery, no wiring required, simple construction, and cost reduction.
This product is widely used in the M2M industry in the IoT industry chain, such as schools, hospitals, banks, gas stations, residential areas, stations, computer rooms, public toilets, and other application scenarios.
Technical Specifications
| Wireless Transmission | |
| Communication Protocol | LoRaWAN,LoRa TDMA Networking |
| Frequency | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3 |
| Tx Power | 20dBm (915) / 16dBm (868) / 17dBm (470) |
| Mode | OTAA/ABP |
| Temperature Measurement | |
| Range | -40°C to + 80°C |
| Accuracy | 0°C to + 70°C (±0.3°C), -30°C to 0°C (±0.6°C) |
| Resolution | 0.3°C |
| Humidity Measurement | |
| Range | 0% to 100% RH |
| Accuracy | 10% to 90% RH (±3%), below 10% and above 90% RH(±5%) |
| Resolution | ±2 %RH |
| Physical Characteristics | |
| Power Supply | ER26500 Li-SOCl2 8000 mAh battery |
| Battery Life | 3 years |
| Operating Temperature | -30°C to 70°C |
| Dimensions | 90x85x40 mm |
| Installation | Wall Mounting |
