LoRa Wireless I/O Controller
The ZW-ST600 wireless controller is a product of LPWAN (Low Power Wide Area Network).Supporting various networking methods such as wireless networking and star networking based on LoRa technology for time division multiple access protocol, supporting DI digital input detection, supporting control of DO output control, software and hardware WDT watchdog design, dual monitoring of the system to ensure stable operation.
Product description
The ZW-ST600 wireless controller is a product of LPWAN (Low Power Wide Area Network).
Supporting various networking methods such as wireless networking and star networking based on LoRa technology for time division multiple access protocol, supporting DI digital input detection, supporting control of DO output control, software and hardware WDT watchdog design, dual monitoring of the system to ensure stable operation.
This product is widely used in the M2M industry and is widely used in the IoT industry chain, such as smart factories, smart irrigation, agricultural greenhouses, computer rooms, hydrology, station terminals, and other IoT environmental monitoring fields.
Technical Specifications
Wireless Interface Specifications| Wireless Transmission | |
| Communication Protocol | LoRaWAN,LoRa TDMA Networking |
| Frequency | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 20dBm (915) / 16dBm (868) / 17dBm (470) |
| Mode | OTAA/ABP Class A |
| Interface | |
| Digital input | 5 × DI |
| Digital Output | 5 × DO |
| RS485 | 1 ×RS485 |
| Operation | |
| Configuration | Local serial port configuration、Remote configuration |
| Physical Characteristics | |
| Power Supply | 12/24VDC |
| Operating Temperature | -30°C to 70°C |

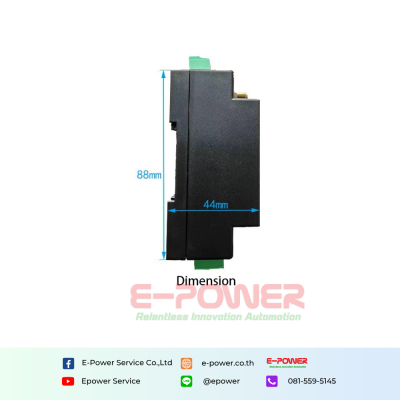

| Dimensions | 88x55x44 mm |
| Installation | Rail mounted |
