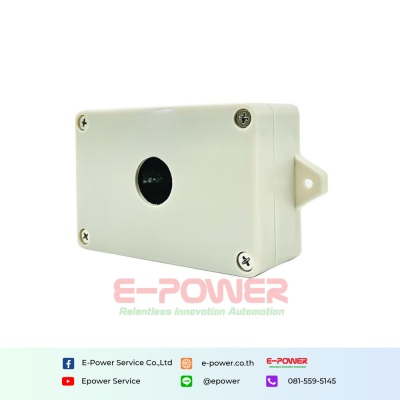

LoRa ToF Laser Ranging Sensor
Short Description
The ToF laser ranging sensor adopts ToF (Time of Flight) technology, which can accurately detect the distance between the sensor and the target in a short period of time.
Brands: EPS
Product description
Specifications
| Wireless Transmission | |
| Communication Protocol | LoRaWAN,LoRa TDMA Networking |
| Frequency | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 20dBm (915) / 16dBm (868) / 17dBm (470) |
| Mode | OTAA/ABP Class A |
| Probe arameters | |
| Range | 0-6m |
| Accuracy | 1cm |
| Operation | |
| Configuration | NFC Configuration via Mobile App |
| Physical Characteristics | |
| Power Supply | ER26500 Li-SOCI2 8500 mAh battery |
| Battery Life | 3 years |
| Operating Temperature | -30°C to 70°C |

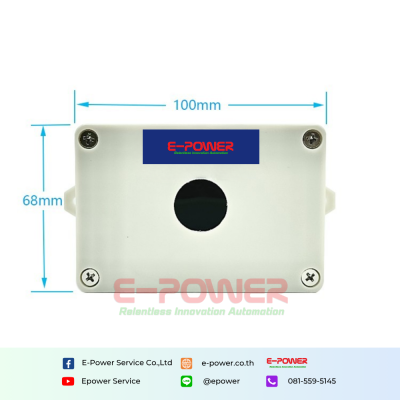

| Dimensions | 100x68x40 mm |
| Installation | Wall hanging and holding pole |
