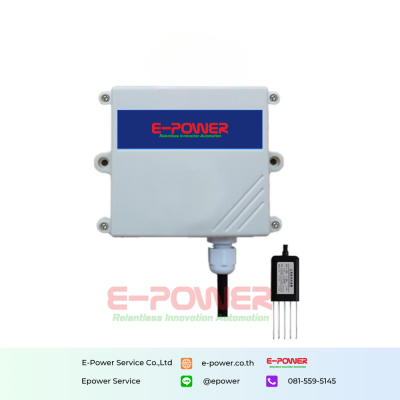

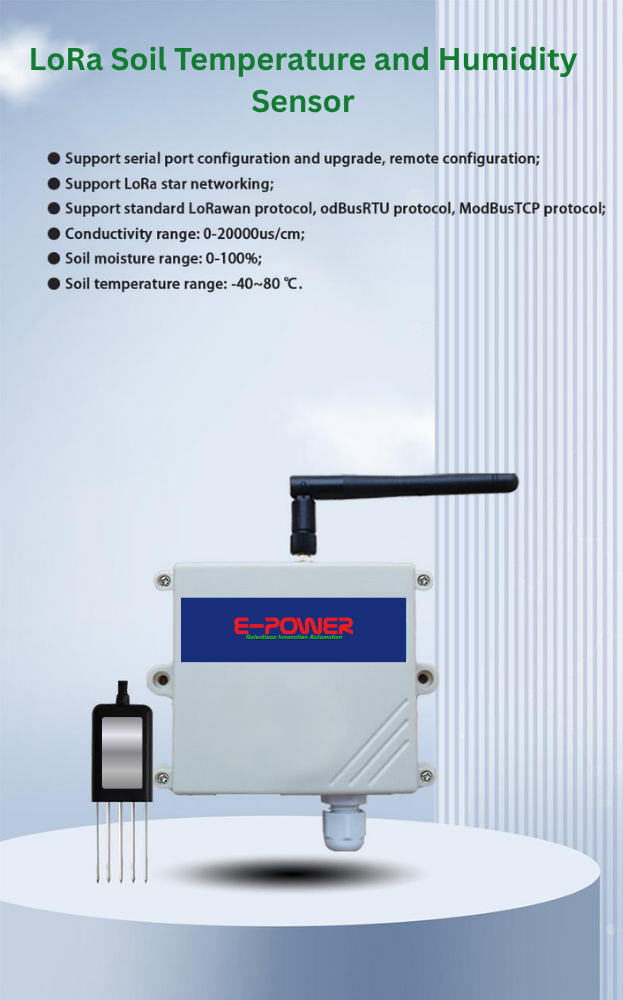

LoRa soil temperature and humidity sensor

Based on LoRaTM spread spectrum modulation technology, terminals can communicate over ultra long distances. A wireless conductivity soil temperature and moisture collection terminal that integrates data collection and monitoring. This sensor has stable performance and high sensitivity, making it an important tool for observing and studying the occurrence, evolution, improvement, and water salt dynamics of saline soil. By measuring the dielectric constant of soil, it is possible to directly and stably reflect the true moisture content of various soils. The mass percentage of measurable soil moisture.

Product description

Product Details

The soil temperature and humidity collection terminal is a product of LPWAN (Low Power Wide Area Network).

Based on LoRaTM spread spectrum modulation technology, terminals can communicate over ultra long distances. A wireless conductivity soil temperature and moisture collection terminal that integrates data collection and monitoring. This sensor has stable performance and high sensitivity, making it an important tool for observing and studying the occurrence, evolution, improvement, and water salt dynamics of saline soil. By measuring the dielectric constant of soil, it is possible to directly and stably reflect the true moisture content of various soils. The mass percentage of measurable soil moisture.

This product is widely used in the M2M industry in the IoT industry chain, such as soil moisture monitoring, scientific experiments, water-saving irrigation, greenhouses, flowers and vegetables, grassland pastures, soil rapid testing, plant cultivation, sewage treatment, precision agriculture, and other occasions.

Specifications

Wireless Transmission
Communication ProtocolLoRaWAN,LoRa TDMA Networking
FrequencyCN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Tx Power20dBm (915) / 16dBm (868) / 17dBm (470)
ModeOTAA/ABP Class A
Measurement
MoistureRange: 0-100%
Accuracy: 2%(0-50%), 3%(50-100%RH)
TemperatureRange: -40~+85
Accuracy: ±0.5
Electrical ConductivityRange: 0-20000us/cm
Accuracy: ±3%(0-1000us/cm); ±5%(10000-20000us/cm)
Operation
ConfigurationNFC Configuration via Mobile App
Physical Characteristics
Power SupplyER26500 Li-SOCI2 8000 mAh battery
Battery Life3 years
Operating Temperature-30°C to 70°C
Dimensions90x85x40 mm
InstallationWall Mounting
