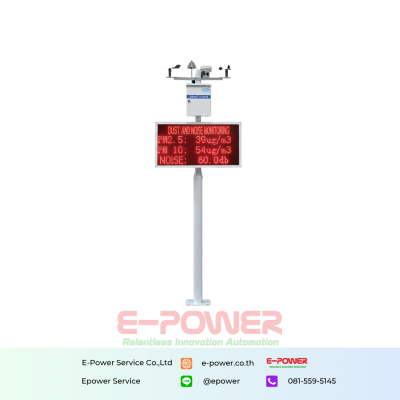

Product description
Product Details
- Support 1x shutter box (temperature, humidity, noise, air pressure) acquisition.
- Support 1x wind speed acquisition, 1x wind direction acquisition, and 1x relay output (default can be connected to on-site secondary relay control fog cannon).
- Upload data to the monitoring software platform through 4G mode, and be able to connect to an external LED screen (54cm * 102cm) to display the current numerical information in real-time.
Specifications
| Power Supply | AC220V |
| Communication Interface | GPRS wireless transmission (4G optional) |
| Air temperature sensor | Range: -40~+80 °C Resolution: 0.1 °C |
| Accuracy: ± 0.5 °C (25 °C) | |
| Air humidity sensor | Range: 0-100% RH Resolution: 0.1% |
| Accuracy: ± 3% RH (80% RH, 25 °C) | |
| Atmospheric Pressure Sensor | Range:0～120kPa Resolution: 0.1kPa |
| Accuracy: ±0.15kPa@25ºC~10kPa | |
| Wind speed Sensor | Range: 0～60m/s Resolution: 0.1 m/s |
| Accuracy: ±0.3m/s | |
| Wind direction Sensor | Range: 8 directions |
| Noise Sensor | Accuracy: 30～130dB Resolution: 0.1dB |
| Accuracy: ± 0.5dB (at reference pitch: 94dB@1kHz ) | |
| PM | Range: 0～1000μg/m³ Resolution: 1μg/m³ |
| Particle counting efficiency: | |
| 50%@0.3μm, 85%@0.5μm, | |
| PM2.5 Accuracy: ±3%FS, PM10(μg/m³:0～ 50%RH) | |
| LED Screen | Size 64cm * 102cm |
| Relay | 1 or 2 channels, connected to a secondary relay, capable of controlling on-site fog gun firing |
| Equipment Bracket | 2/3m upright pole (optional) |
| Sampling method | Pump suction type |
