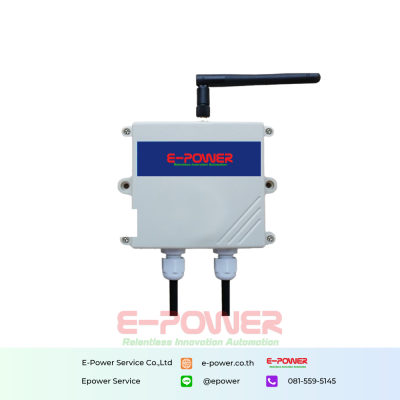

LoRa Wireless Valve Controller

Based on LoRa spread spectrum modulation technology, the terminal can communicate over ultra long distances. Adopting low-power pulse (self holding) intelligent irrigation solenoid valve, with dual filtering to prevent clogging of the electromagnetic core, fully enclosed electromagnetic coil, waterproof, and slow closing function to prevent water hammer and damage to the system. Active threshold reporting, supporting remote wireless gateway configuration, with good stability and reliability.

Product description

Specifications

Wireless Transmission
Communication ProtocolLoRaWAN.LoRa TDMA Networking
FrequencyCN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Tx Power20dBm (915) / 16dBm (868) / 17dBm (470)
ModeOTAA/ABP Class A
Interface
Pulse Output1x Pulse solenoid valve (two wire system, supporting self-locking function)
Digital Output1 × 12V output (optional 5V)
Operation
ConfigurationNFC mobile app configuration
Physical Characteristics
Power Supply12/24VDC(Optional solar, battery powered)
Operating Temperature-30°C to 70°C
Dimensions90x85x40 mm
InstallationWall mounted or pole mounted installation
