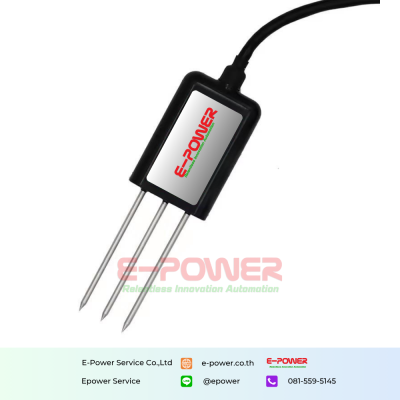

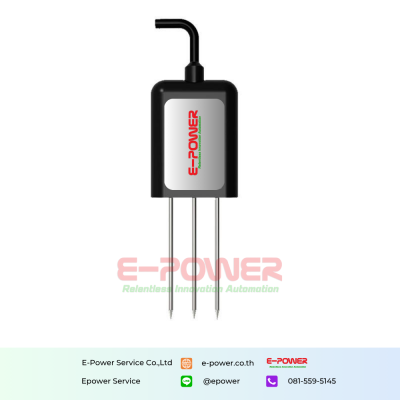

Soil temperature and moisture sensor

Brands :EPS

Product description

Specifications

Attribute
Customized support	OEM, ODM, OBM
Name	Soil Temperature Humidity EC Sensors Soil Moisture Conductivity Sensor
Application	Moisture sensor
Output signal	4-20mA/0-5V/0-10V/RS485
Operation temperature	-40~+60
Response time	1s
Soil moisture
Range	0-100%
Repeatability	0.1%
Detection accuracy	±2% within 0-50%, @ (brown soil, 30%, 25) ±3% within 50-100%, @ (brown soil, 60%, 25)
Soil temperature
Range	-40~80
Repeatability	0.1
Detection accuracy	±0.5 (25)
Soil EC
Range	0-20000 μS/cm
Repeatability	10 μS/cm
Detection accuracy	±3% in the range of 0-10000 μS/cm; ±5% in the range of 10000-20000 μS/cm
Physical Characteristics
Power Supply	5-30VDC
Probe material	304 stainless steel

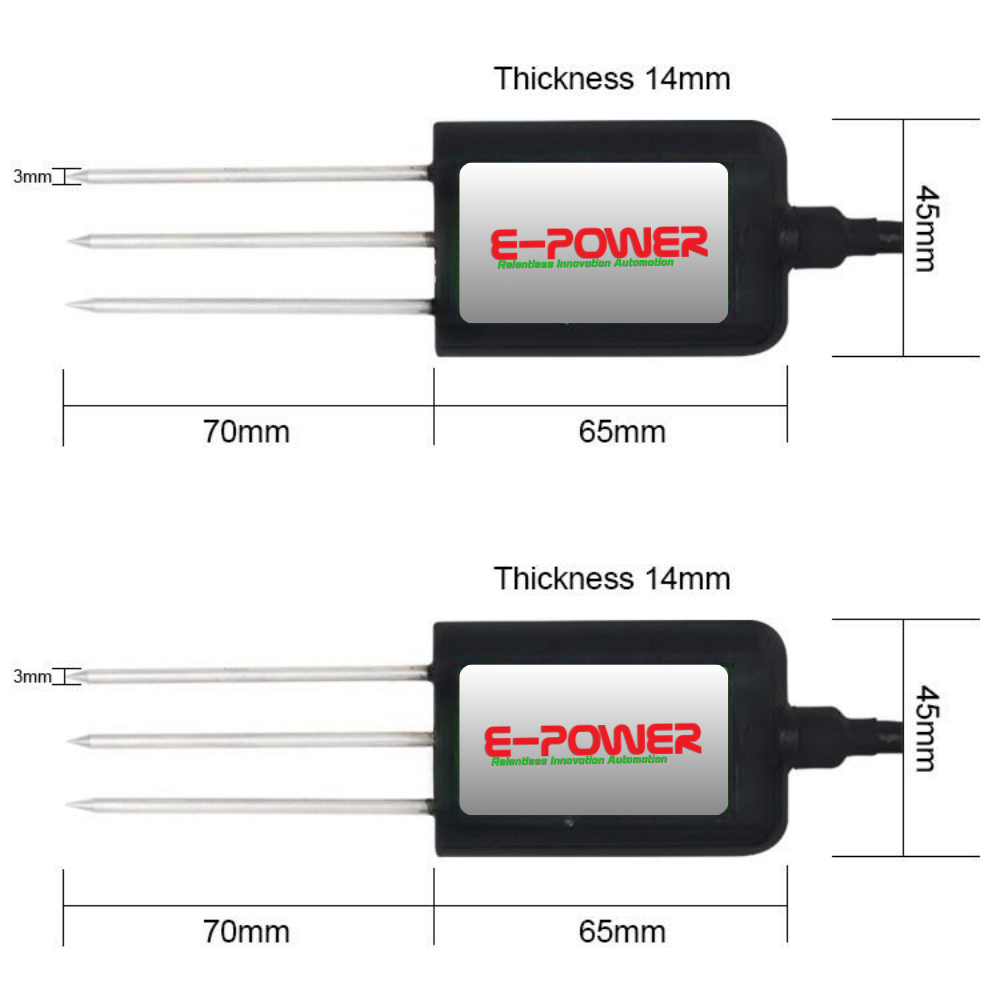

Physical dimensions	4515123mm
