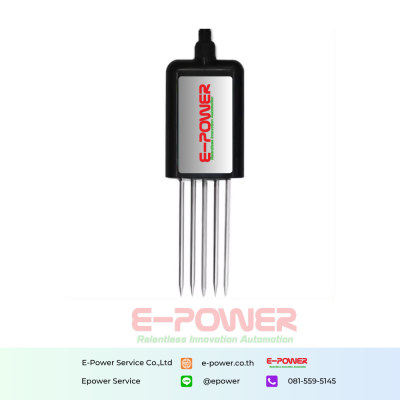

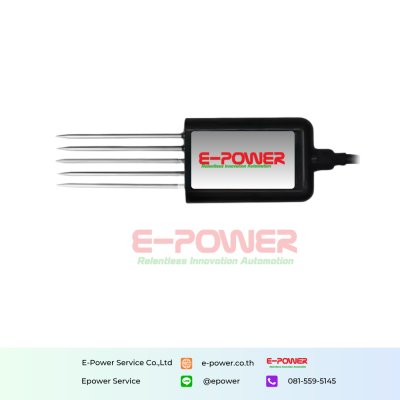

Soil Integrated Transmitter Temperature Humidity EC pH Sensor

Soil Integrated Transmitter Temperature Humidity EC pH Sensor

This soil sensor 4 in 1 can reflect four elements of soil moisture content, electrical conductivity, temperature, and pH. Suitable for all kinds of soil. It can be widely used in water-saving irrigation, greenhouses, flowers and vegetables, grassland pastures, plant cultivation, sewage treatment, precision agriculture and other occasions.

Categories : EPS Sensor , LoRaWAN Sensor

Brands :EPS

Product description

Specifications

Attribute
Customized support	OEM, ODM, OBM
Name	soil integrated temperature humidity EC ph 4 in 1 soil sensor
Application	Moisture sensor
Output signal	4-20mA/0-5V/0-10V/RS485
Operation temperature	-40~+60
Response time	1s
Soil moisture
Range	0-100%
Repeatability	0.1%
Detection accuracy	±2% within 0-50%, @ (brown soil, 30%, 25) ±3% within 50-100%, @ (brown soil, 60%, 25)
Soil temperature
Range	-40~80
Repeatability	0.1
Detection accuracy	±0.5 (25)
Soil EC
Range	0-20000 μS/cm
Repeatability	10 μS/cm
Detection accuracy	±3% in the range of 0-10000 μS/cm; ±5% in the range of 10000-20000 μS/cm
Soil pH
Range	3-9 PH
Resolution	0.1
Physical Characteristics
Power Supply	5-30VDC
Probe material	304 stainless steel
Physical dimensions	4515123mm
