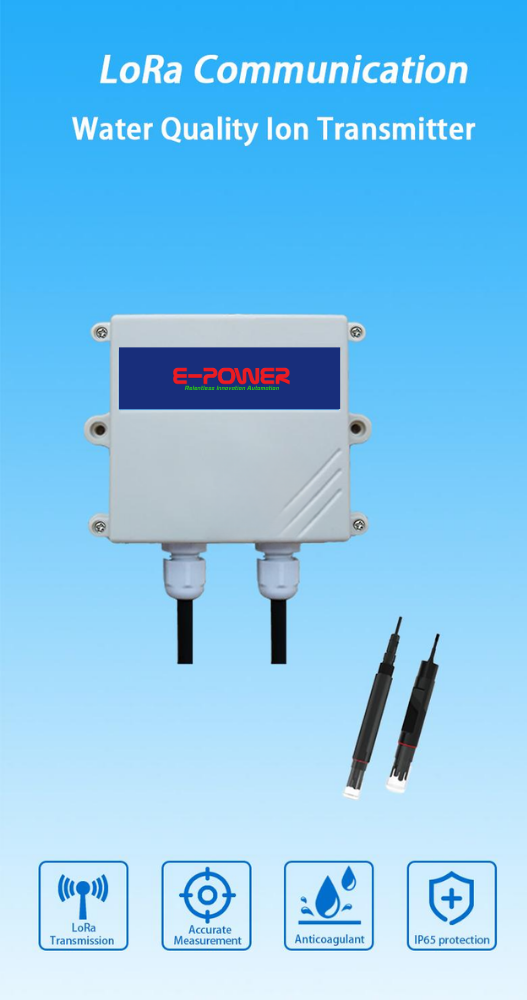

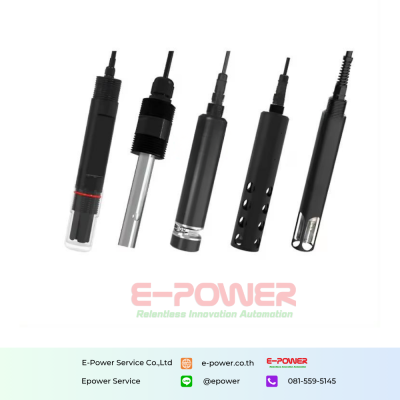

LoRaWAN water ion sensor

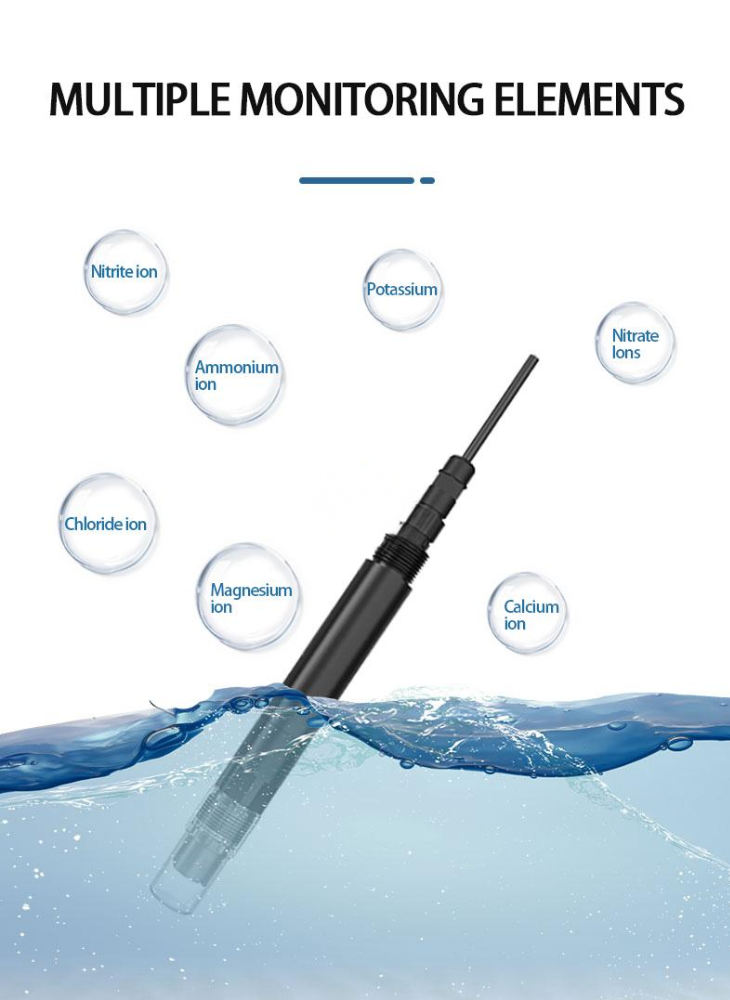

The LoRa water quality ion sensor is a device that measures the concentration of various ions in water, with 8 options: ammonium ions, nitrite ions, nitrate ions, magnesium ions, sodium ions, potassium ions, chloride ions, calcium ions, etc. Supports LoRa self-organizing network and standard LoRaWAN protocol, widely used for online automatic continuous analysis and detection of ions in industrial wastewater, surface water, drinking water, seawater, as well as industrial production process control.

Product description

Technical Specifications

Attribute
Customized supportOEM, ODM, OBM
NameIndustrial LoRa water quality ion sensor
Descriptionwater quality sensor
Communication ProtocolLoRaWAN.LoRa TDMA Networking
FrequencyCN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Tx Power20dBm (915) / 16dBm (868) / 17dBm (470)
ModeOTAA/ABP Class A
Sensor parameters
Measuring range0-100.00mg/L(does not support chloride ions)
0-1000.0mg/L (only supports sodium, magnesium, and calcium ions)
0-3500.0mg/L (only supports chloride ions)
Resolution0.01mg/L0.1mg/L1mg/L
Accuracy5%FS
Physical Characteristics
Power Supply12/24VDC
Operating Temperature-30°C to 70°C
Dimensions90x85x40 mm

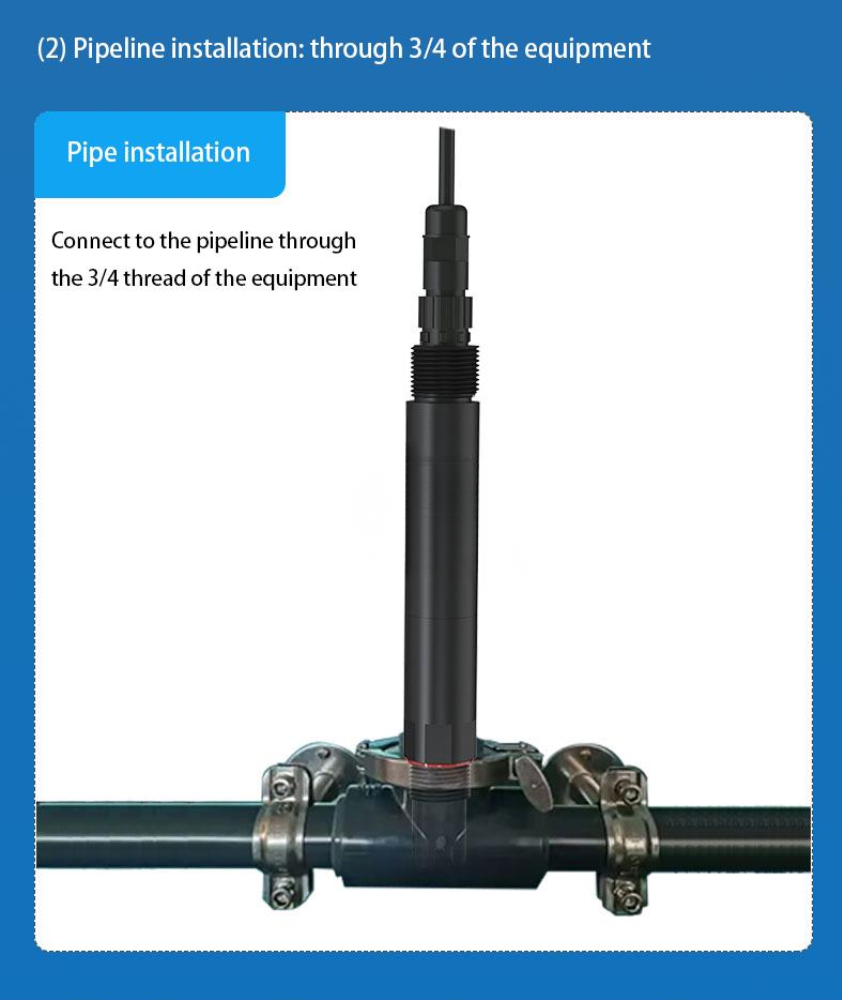

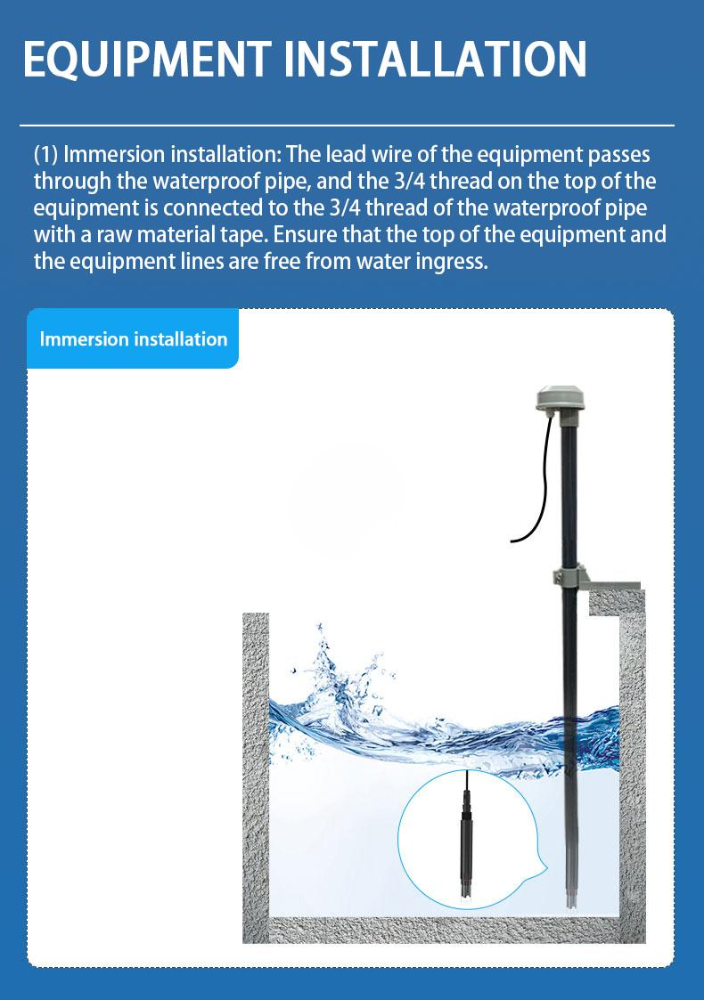

InstallationWall Mounting
