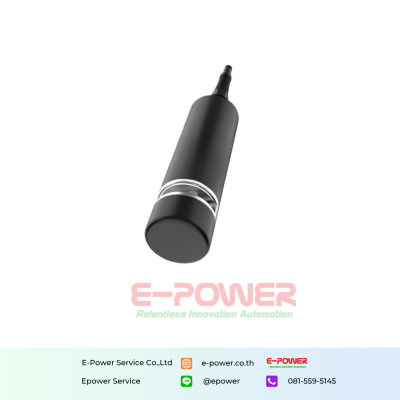

LoRa water quality COD sensor

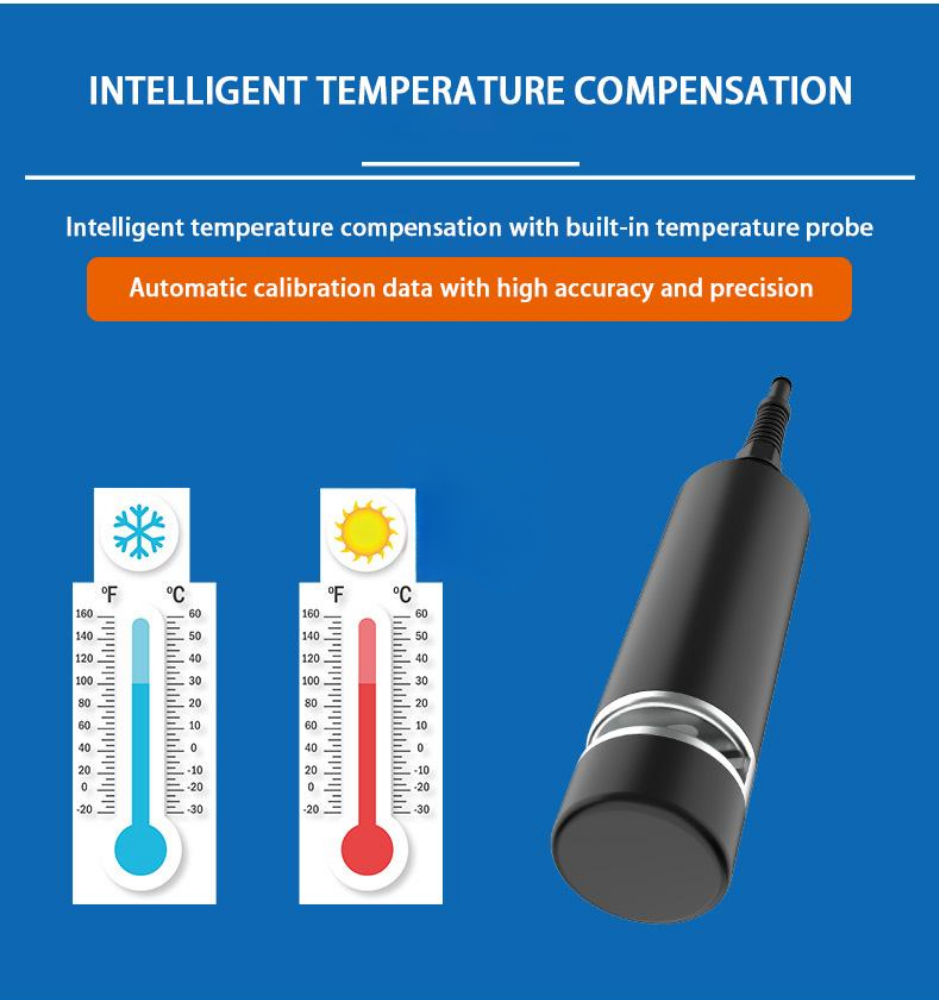

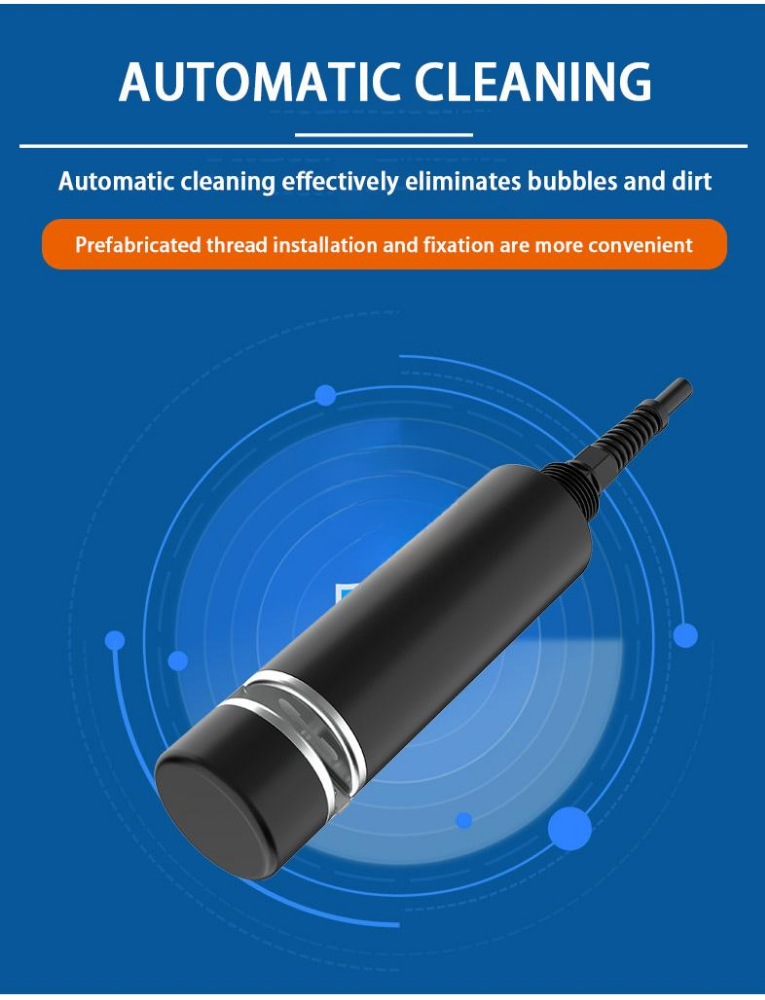

The LoRa water quality COD sensor is a device for measuring the chemical oxygen demand (COD) of a solution, using ultraviolet absorption method without the need for chemical reagents; Internally integrated self-cleaning system, effectively preventing biological attachment; Built in temperature transmitter with automatic temperature compensation function; Using modulated optical signals to reduce visible light interference; Equipped with a turbidity measurement system to effectively compensate for the impact of turbidity on COD measurement. Supports LoRa TDMA ad hoc networks and standard LoRaWAN protocols.

Product description

Technical Specifications

Attribute
Customized supportOEM, ODM, OBM
NameIndustrial LoRa water quality ammonia nitrogen sensor
Descriptionwater quality sensor
Communication ProtocolLoRaWAN.LoRa TDMA Networking
FrequencyCN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Tx Power20dBm (915) / 16dBm (868) / 17dBm (470)
ModeOTAA/ABP Class A
Sensor parameters
Measuring range0~500mg/L equiv.KHP
Resolution0.1mg/L
Accuracy±5%FS equiv.KHP(25°C)
Physical Characteristics
Power Supply12/24VDC
Operating Temperature-30°C to 70°C
Dimensions90x85x40 mm
InstallationWall Mounting
