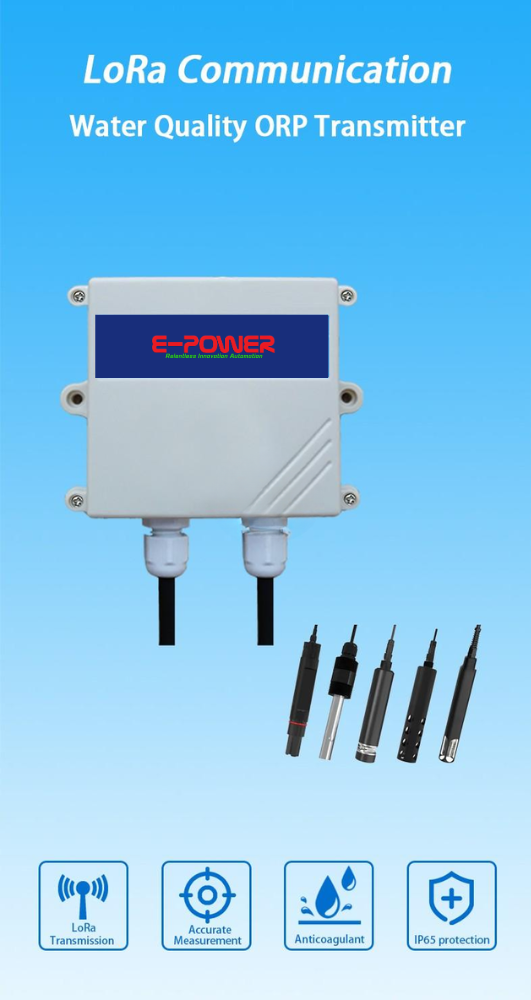

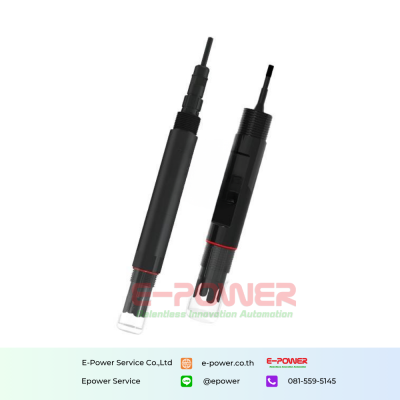

LoRa water quality ORP sensor

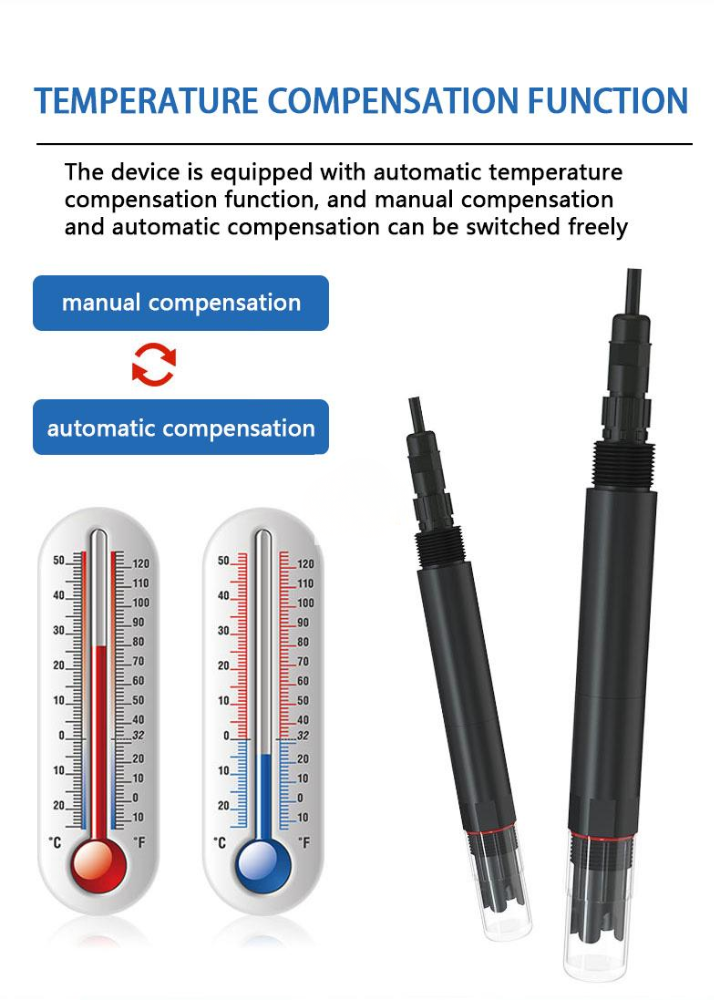

The LoRa water quality ORP sensor is a device used to measure the redox potential of a solution. The ORP composite electrode is made of high-purity platinum, which has strong acid and alkali resistance and antioxidant ability, high measurement accuracy, fast response, and good stability. The electrode can automatically compensate based on temperature. This product is suitable for online monitoring of redox potential in wastewater containing cyanide and chromium. Supports LoRa TDMA ad hoc networks and standard LoRaWAN protocols.

Product description

Technical Specifications

Attribute
Customized supportOEM, ODM, OBM
NameIndustrial LoRa water quality ORP sensor
Descriptionwater quality sensor
Communication ProtocolLoRaWAN.LoRa TDMA Networking
FrequencyCN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Tx Power20dBm (915) / 16dBm (868) / 17dBm (470)
ModeOTAA/ABP Class A
Sensor parameters
Measuring range-1999~1999mV
Resolution1mV
Accuracy±1mV
Physical Characteristics
Power Supply12/24VDC
Operating Temperature-30°C to 70°C
Dimensions90x85x40 mm

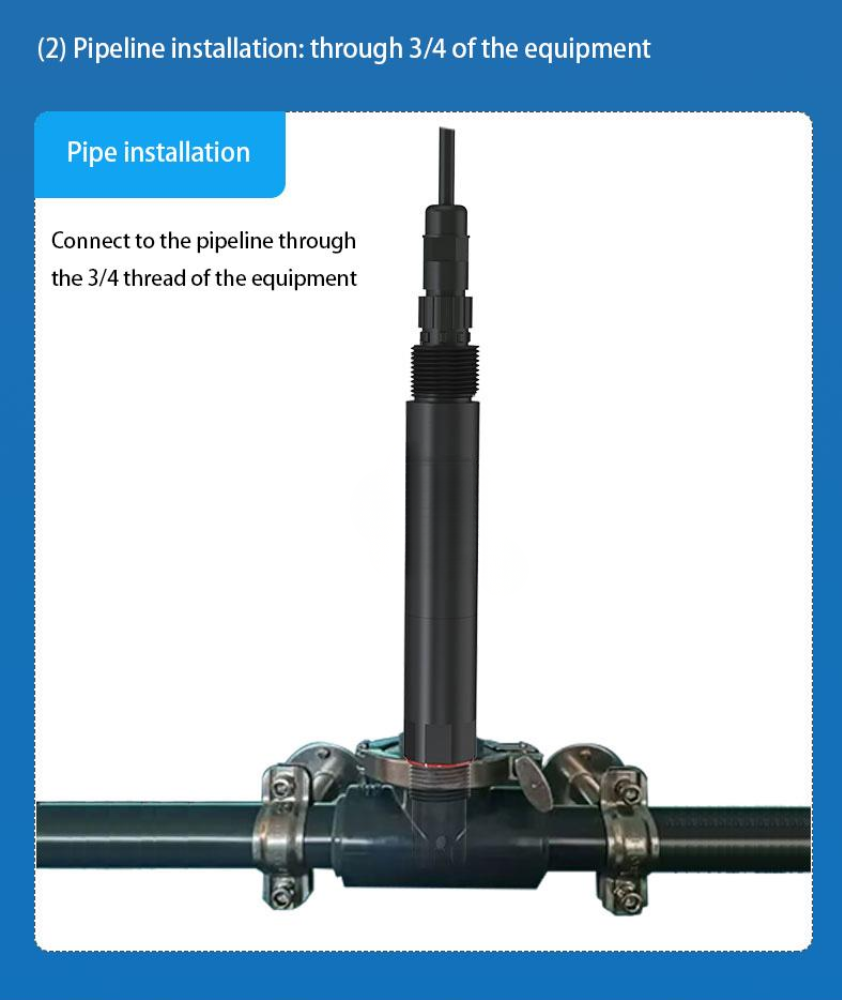

InstallationWall Mounting
