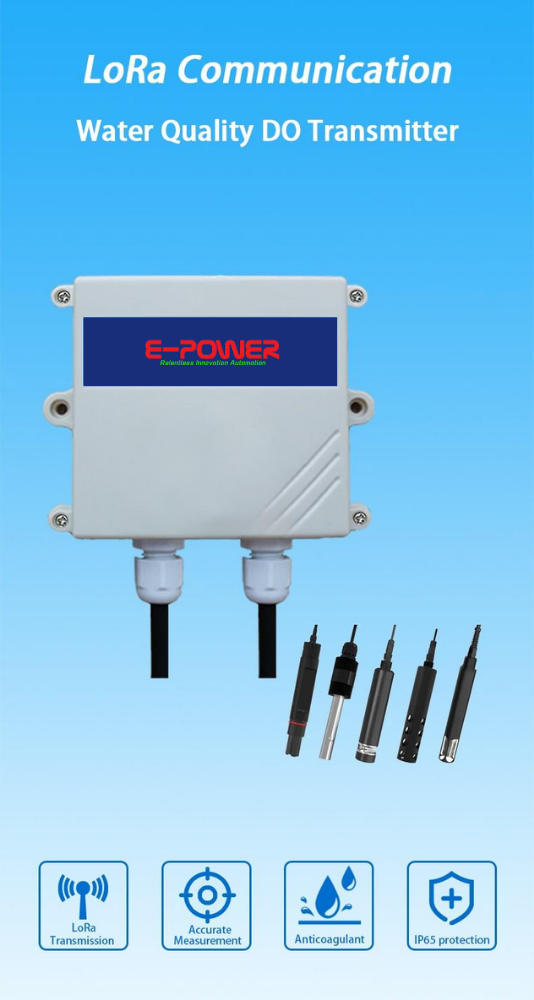

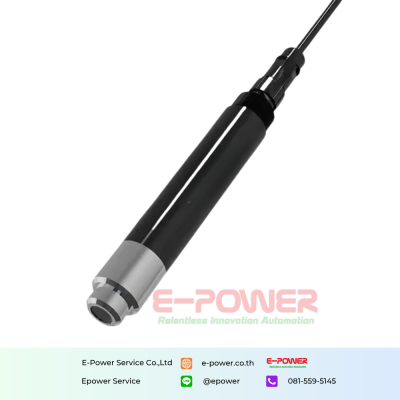

LoRaWAN Water Quality DO sensor

Short Description

The LoRa water quality DO sensor is a device that uses fluorescence measurement principles to measure the concentration of dissolved oxygen in a solution. It does not consume oxygen and does not require electrolytes. Built in temperature transmitter with automatic temperature compensation function. The calibration function provides a simpler and more convenient calibration method. The use of imported high-quality fluorescent films can be widely applied in industries such as water treatment, aquaculture, and environmental monitoring. Supports LoRa TDMA networking and standard LoRaWAN protocol.
Brands: EPS
Product description

Technical Specifications

Attribute
Customized supportOEM, ODM, OBM
NameIndustrial LoRa water quality dissolved oxygen sensor
Descriptionwater quality sensor
Communication ProtocolLoRaWAN.LoRa TDMA Networking
FrequencyCN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Tx Power20dBm (915) / 16dBm (868) / 17dBm (470)
ModeOTAA/ABP Class A
Sensor parameters
Measuring range0-20mg/L (0-200% saturation)
Resolution0.01mg/L;0.1%;0.1
Accuracy±3%FS;±0.5°C(25°C)
Physical Characteristics
Power Supply12/24VDC
Operating Temperature-30°C to 70°C
Dimensions90x85x40 mm
InstallationWall Mounting
