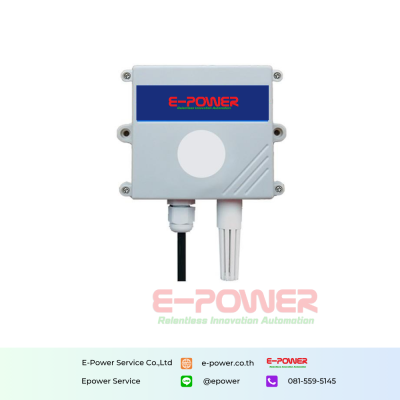

LoRa Gas Comprehensive Monitoring Instrument
Product Details
The LoRa gas comprehensive monitoring instrument is a product of LPWAN (Low Power Wide Area Network).

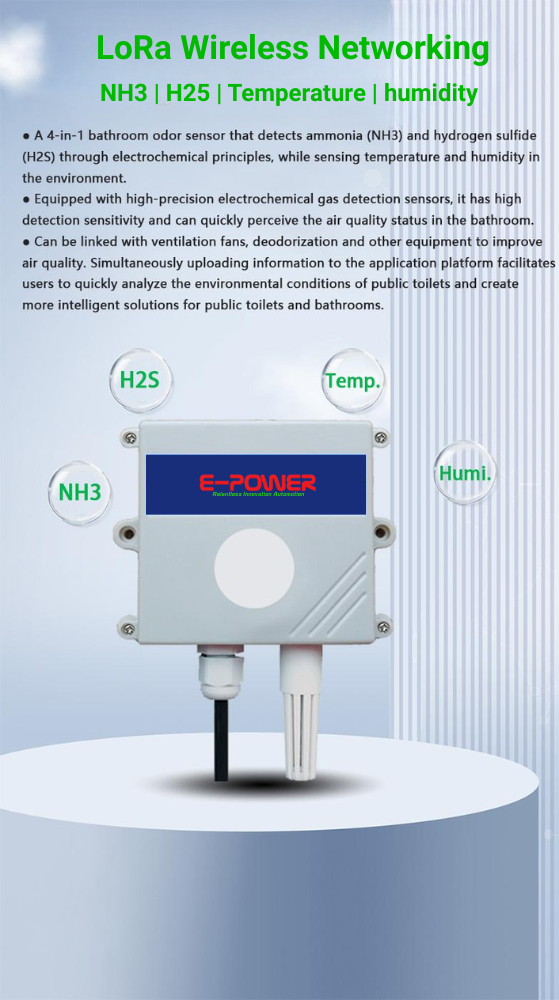

Based on LoRaTM spread spectrum modulation technology, terminals can communicate over ultra long distances. Collecting data A wireless temperature and humidity monitoring instrument that integrates and monitors. This product has built-in air temperature and humidity sensors, H2S sensors, and NH3 sensors. Optional gas monitoring sensors such as CO and methane have the characteristics of high detection accuracy, stable performance, and low power onsumption. It can preset threshold values according to the on-site environment, actively report anomalies, and has good stability and reliability.
This product is widely used in the M2M industry and is widely used in the IoT industry chain, such as smart toilets, intelligent aquaculture, industrial environment monitoring, etc.
Technical Specifications
| Wireless Transmission | |
| Communication Protocol | LoRaWAN.LoRa TDMA Networking |
| Frequency | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 20dBm (915) / 16dBm (868) / 17dBm (470) |
| Mode | OTAA/ABP Class A |
| Sensors | |
| Ammonia (NH3) | Range: 0-50ppm Accuracy: 0.01ppm |
| Hydrogen Sulfide (H2S) | Range: 0-10ppm Accuracy: 0.01ppm |
| Temperature | Range: -40~+80 Accuracy: ±0.3 |
| Humidity | Range: 0~99.9 %RH Accuracy: ±2 %RH |
| Operation | |
| Configuration | NFC Configuration via Mobile App |
| Physical Characteristics | |
| Power Supply | 12/24VDC |
| Operating Temperature | -30°C to 70°C |
| Dimensions | 90x85x40 mm |
| Installation | Wall Mounting |
