Ultrasonic wind speed and direction transmitter (2000kHz)
Ultrasonic wind speed and direction transmitter (2000kHz)

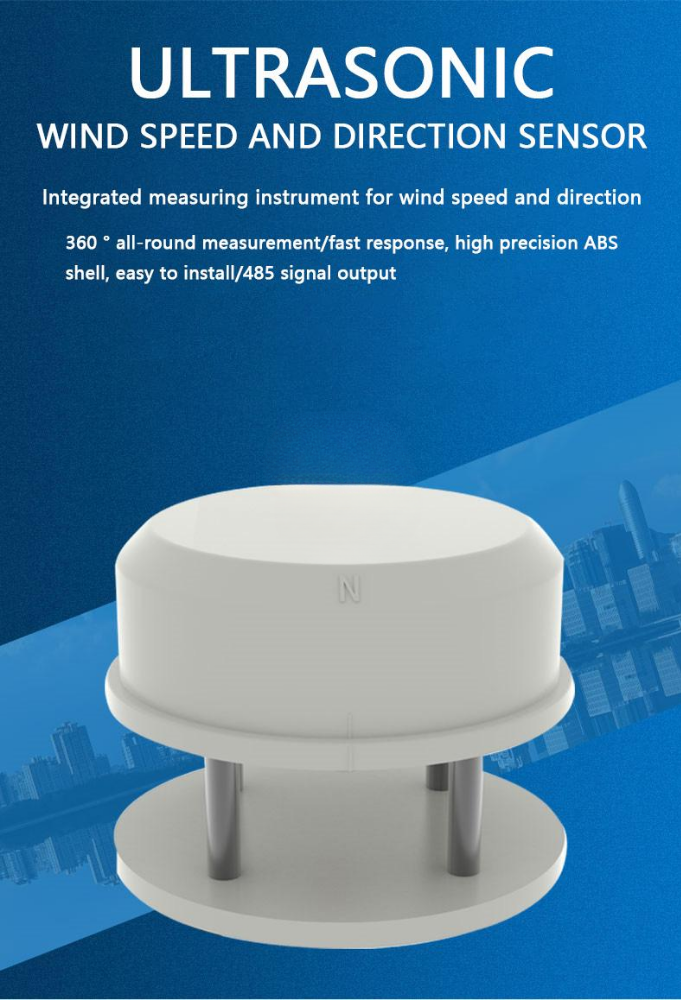

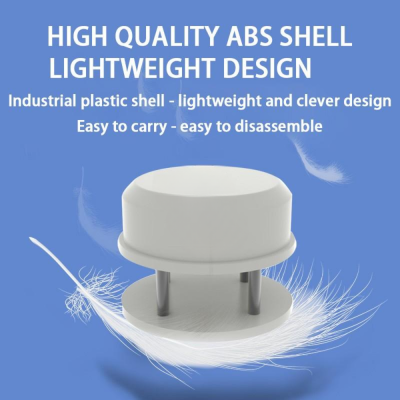

The ultrasonic wind speed and direction sensor is a wind speed and direction measurement instrument developed based on the principle of ultrasound. It uses the transmitted sound wave pulse to measure the time difference at the receiving end to calculate wind speed and direction. This sensor can simultaneously measure instantaneous values of wind speed and direction. The device with built-in electronic compass selection no longer requires orientation during installation, only needs to ensure horizontal installation. The entire machine shell is made of high-quality ABS material, which is lightweight, has no moving parts, is sturdy and durable, and does not require maintenance or on-site calibration
Technical Specifications
| Attribute | |
| Customized support | OEM, ODM, OBM |
| Name | Ultrasonic wind speed and direction transmitter |
| Keywords | wind speed and direction transmitter |
| Output signal | RS485/4-20mA/0-5V/0-10V |
| Working temperature | -40-60 , 0-95% RH (non condensation) |
| Response time | 1s |
| Wind Speed Measurement | |
| Range | 0-60m/s (customizable) |
| Resolution | ± (0.2m/s ± 0.02 * V) (V is the actual wind speed) (60% RH, 25) |
| Resolution ratio | 0.01 m/s |
| Wind Direction Measurement | |
| Range | 0~359° |
| Resolution | ±3° (60%RH,25) |
| Resolution ratio | 1° |
| Physical Characteristics | |
| Power Supply | 10-30VDC |
| Material | ABS Plastic |
| Installation | Nstallation of bracket |
