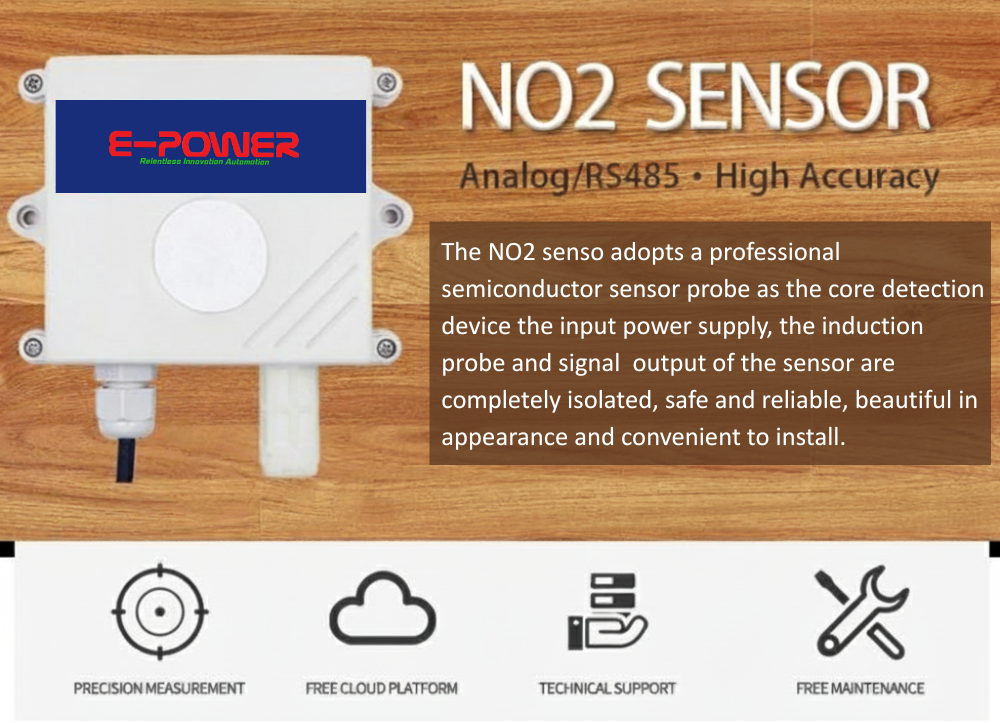

Nitrogen dioxide transmitter

The nitrogen dioxide transmitter adopts imported top brand electrochemical nitrogen dioxide sensors, which have the characteristics of rapid response, sensitivity, and strong anti-interference ability. After our company's unique compensation algorithm and multi-stage standard gas calibration, it also has the characteristics of long life, high precision, high repeatability, and high stability. Suitable for situations that require monitoring of nitrogen dioxide leakage concentration.

Product description

Technical Specifications

Attribute
Customized supportOEM, ODM, OBM
NameNitrogen Dioxide Detector Gas Meter No2 Detectors Digital NO2 Sensor
Detecting GasNO2
Output signal4-20mA/0-5V/0-10V/RS485
Working temperature-20~+50 , 0-90% RH (no condensation)
Response time20ppm: 30S, 2000ppm: 60S
Applicationnitrogen dioxide detection
NO2 Measurement
Range0-20ppm/0-2000ppm
Resolution ratio20ppm: 0.1ppm 2000ppm: 1ppm
Detection accuracy±5%FS
Physical Characteristics
Power Supply10-30VDC
MaterialABS Plastic

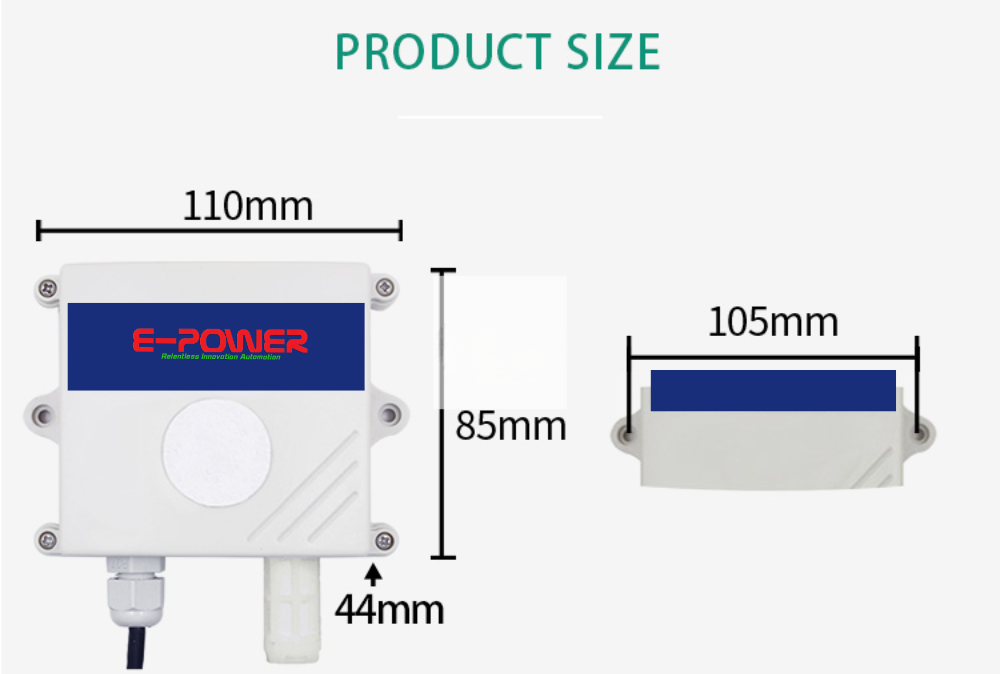

Physical dimensions110x85x44mm
InstallationWall mounted installation
