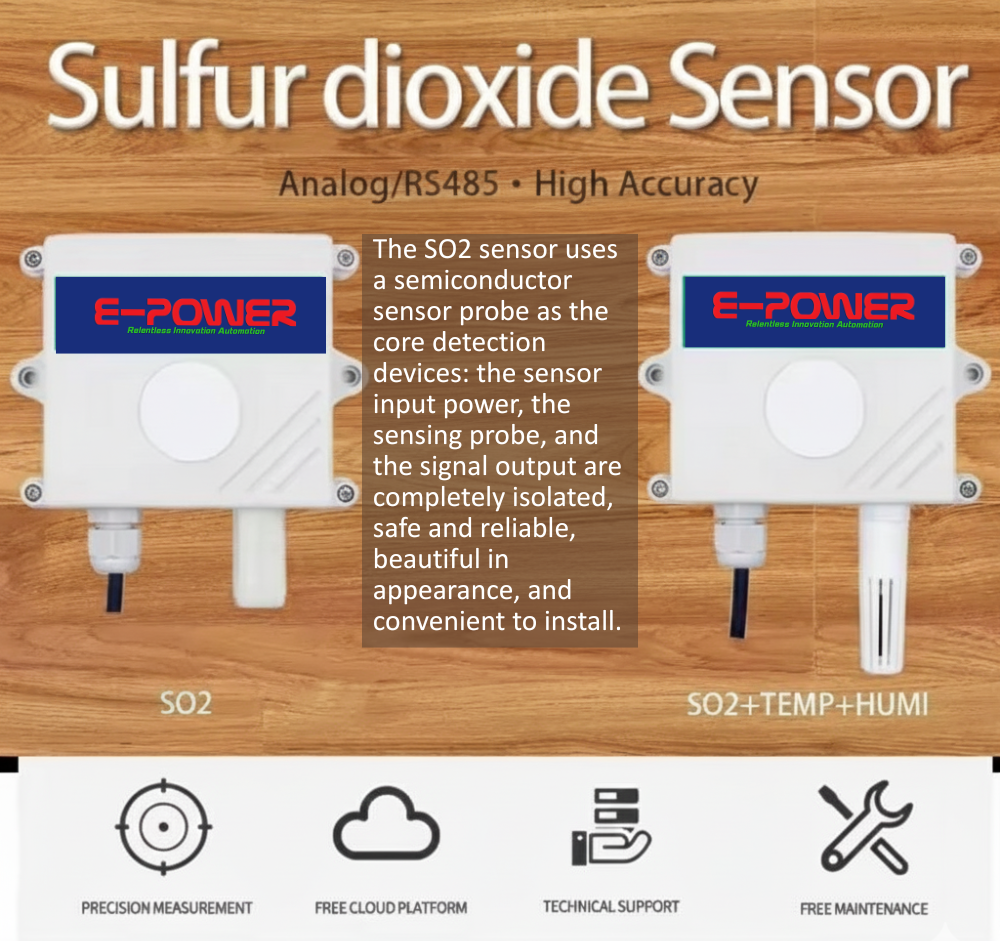

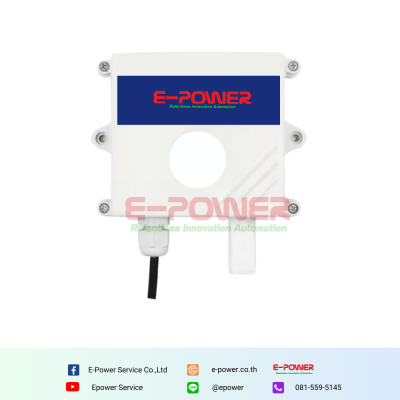

SO2 transmitter

Adopting imported top brand electrochemical sensors, stable and durable; High measurement accuracy, up to ± 5% FS or within ± 10%, repeatability up to ± 2%; Optional high-quality OLED display screen, allowing for direct viewing of values on-site and clear display at night; Ranges of 0-20ppm and 0-2000ppm are optional, and other ranges can also be customized.

Categories : EPS Sensor , IoT Sensor

Brands :EPS

Product description

Technical Specifications

Attribute
Customized support	OEM, ODM, OBM
Name	Remote Control Sulfur Dioxide Sensor Online SO2 Gas Detector
Detecting Gas	CH4
Output signal	4-20mA/0-5V/0-10V/RS485
Working temperature	-20~+50 , 0-90% RH (no condensation)
Response time	20ppm:45s 2000ppm:70s
Application	Methane gas detection
SO2 Measurement
Range	20ppm:0.1ppm 2000ppm:1ppm
Repeatability	2%
Detection accuracy	±5%FS or ±10%
Physical Characteristics
Power Supply	10-30VDC
Material	ABS Plastic

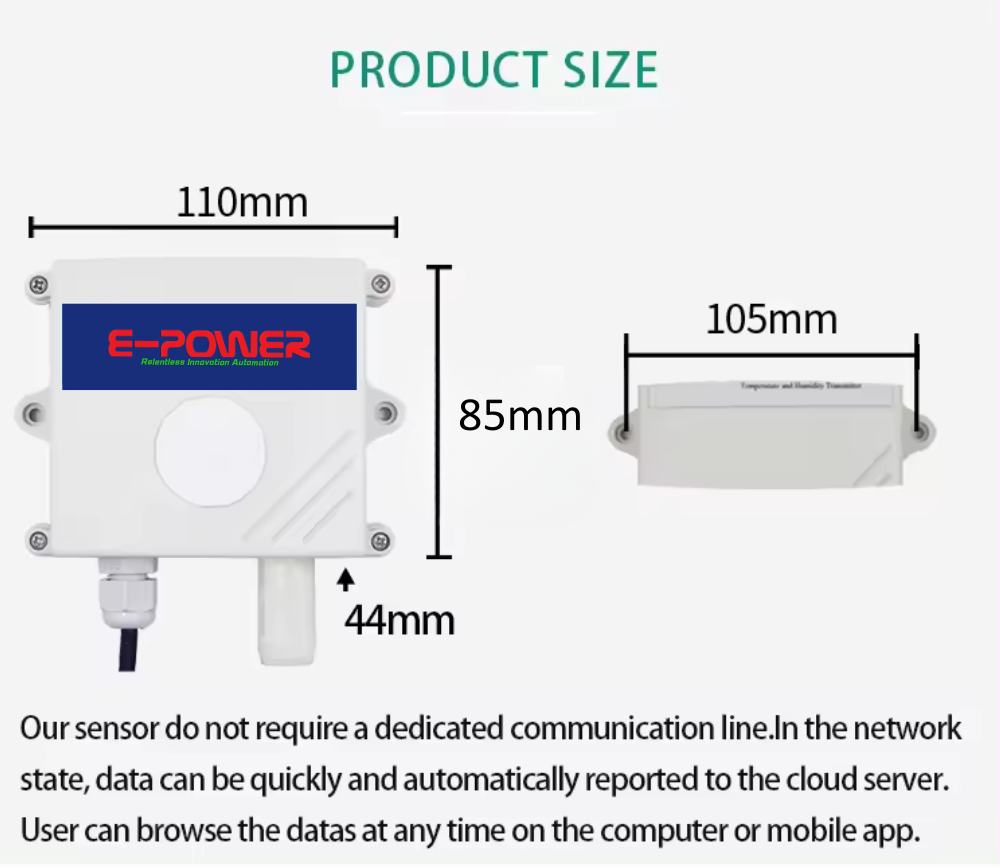

Physical dimensions	110x85x44mm
Installation	Wall mounted installation
