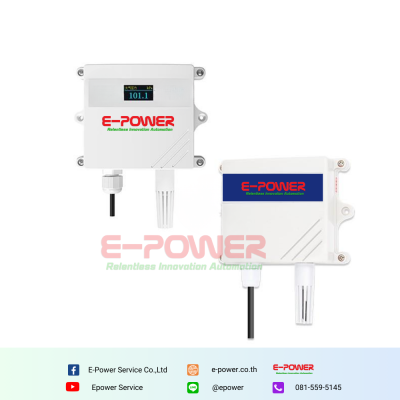

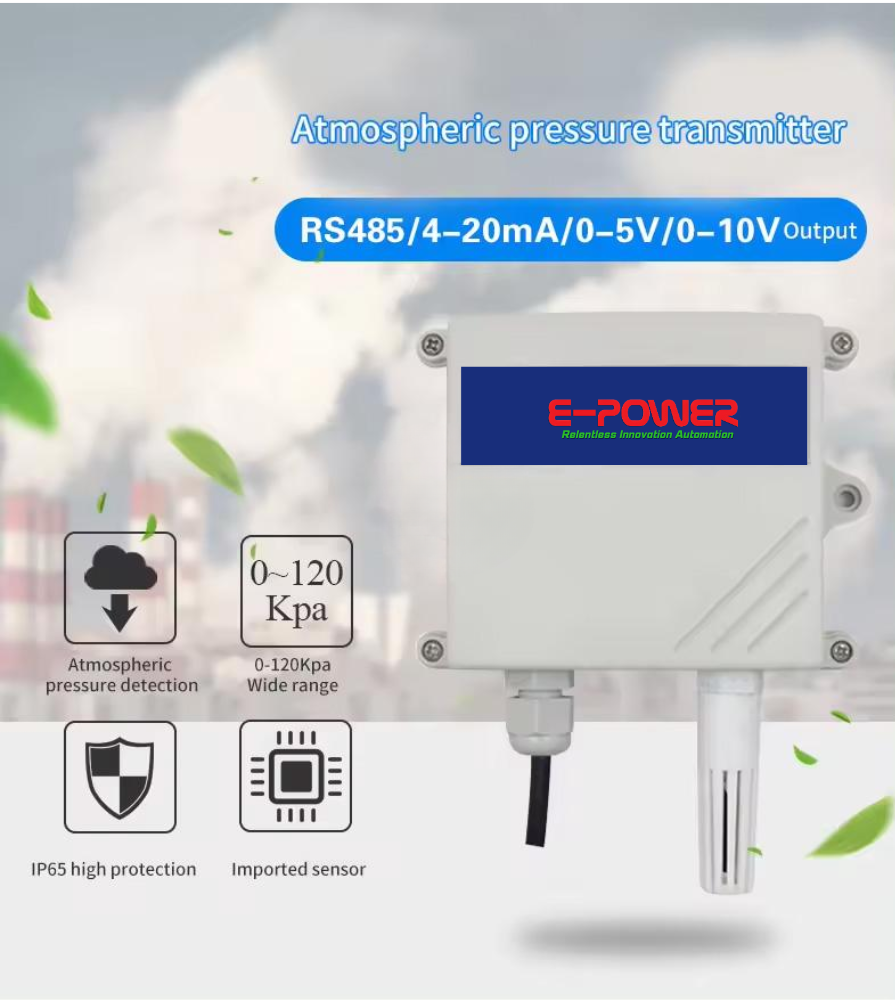

Atmospheric pressure transmitter

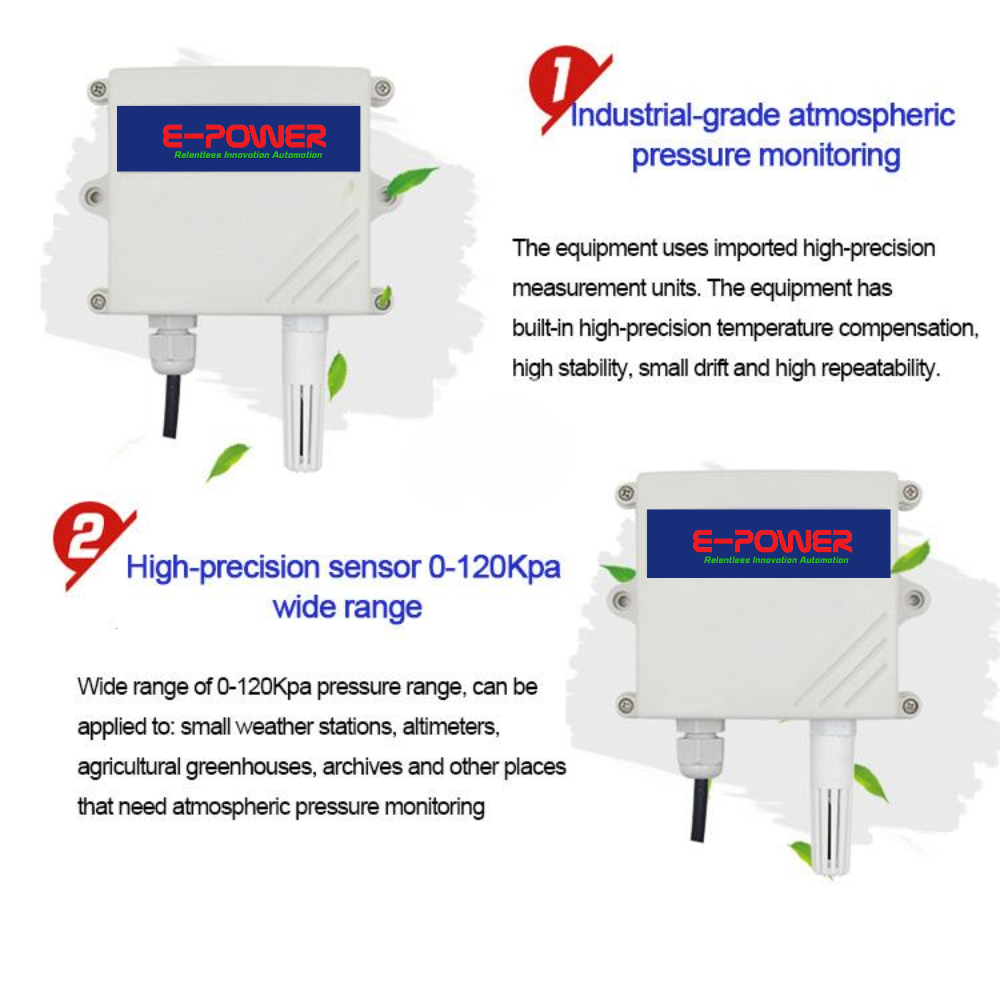

Atmospheric pressure transmitter adopts imported high-precision measuring unit. The device has built-in high-precision temperature compensation, high stability, low drift and high repeatability. It can be easily fixed to the wall by wall-mounted housing. Applicable to small weather stations, altitude meters, agricultural greenhouses, archives and other places that require atmospheric pressure monitoring and temperature measurement.
Product description
Product details
Atmospheric pressure transmitter adopts imported high-precision measuring unit. The device has built-in high-precision temperature compensation, high stability, low drift and high repeatability. It can be easily fixed to the wall by wall-mounted housing. Applicable to small weather stations, altitude meters, agricultural greenhouses, archives and other places that require atmospheric pressure monitoring and temperature measurement.
Technical Specification
Air Pressure Sensor Specifications| Attribute | |
|---|---|
| Customized support | OEM, ODM, OBM |
| Name | Air or atmospheric pressure sensor |
| Application | Air Pressure Measurement |
| Output signal | 4-20mA/0-5V/0-10V/RS485 |
| Operation temperature | -40~+60 |
| Response time | 1s |
| Pressure moisture | |
| Range | 0~120kPa |
| Repeatability | 0.1% |
| Detection accuracy | ±0.15Kpa@25 75Kpa |
| Physical Characteristics | |
| Power Supply | 5-30VDC |
| Probe material | ABS Plastic |

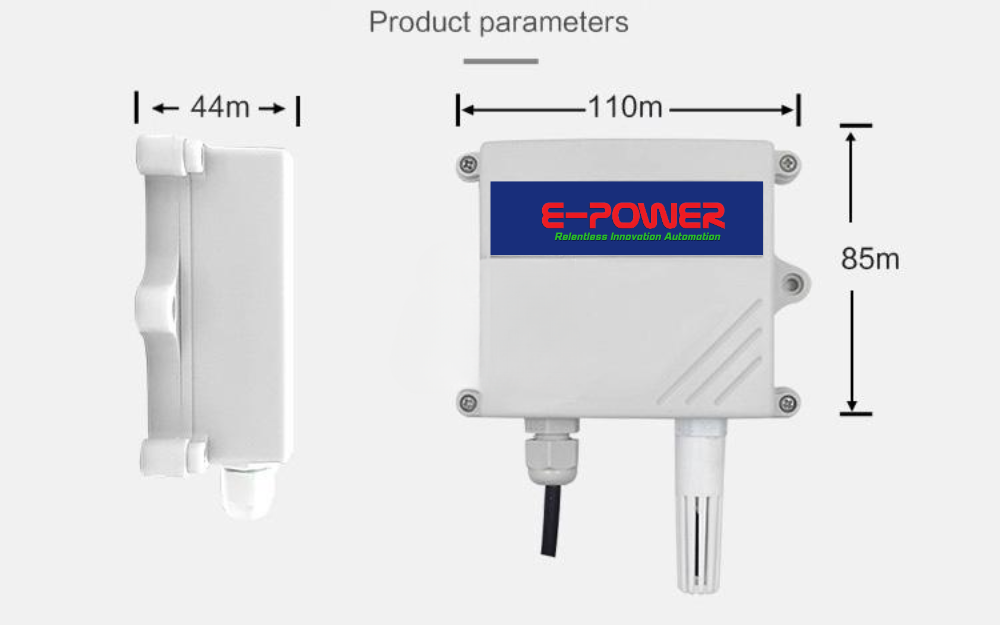

| Physical dimensions | 110*85*44mm |
