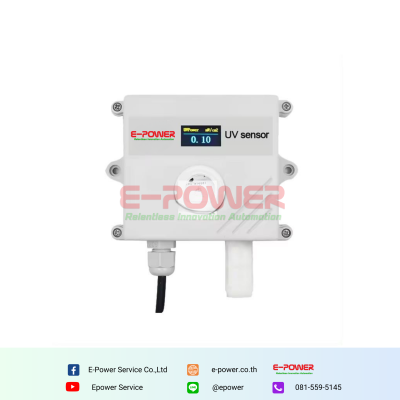

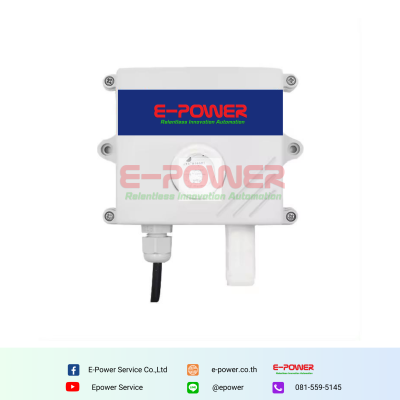

UV Sensor
This product is based on the principle of converting ultraviolet rays into measurable electrical signals using photosensitive elements. The product integrates temperature and humidity sensors, providing more comprehensive measurement data. The product shell is a wall mounted high protection level shell, with a protection level of IP65 and rain and snow resistance.
Product description
Product details
This product is based on the principle of converting ultraviolet rays into measurable electrical signals using photosensitive elements. The product integrates temperature and humidity sensors, providing more comprehensive measurement data. The product shell is a wall mounted high protection level shell, with a protection level of IP65 and rain and snow resistance.
Technical Specification
UV Sensor Specifications| Attribute | |
|---|---|
| Customized support | OEM, ODM, OBM |
| Name | UV Temperature and Humidity Transmitter digital UV sensor RS485 |
| Measuring wavelength range | Wavelength 240-370 nm |
| Output signal | 4-20mA/0-5V/0-10V/RS485 |
| Operation temperature | -40~+60 |
| Response time | 1s |
| UV moisture | |
| Range | 0-15 mW/cm² |
| Repeatability | 0.01 mW/cm² |
| Detection accuracy | ±10%FS(@365nm,60%RH,25) |
| Physical Characteristics | |
| Power Supply | 5-30VDC |
| Probe material | ABS Plastic |
| Physical dimensions | 110*85*44mm |
