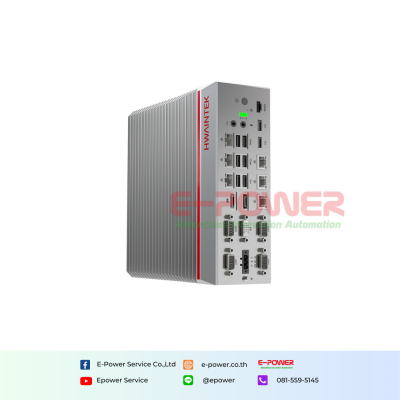

HC6120 Series Performance Computer

Equipped with Intel® Sky/Kaby/Coffee Lake processors, it supports 4-channel slots to meet different application needs, realizes multi-channel PCI/PCIe expansion, modular design of internal components, and ensures stability with wireless cable connection.

Categories : HWAINTEK , Performance Calculation , HC Series

Brands :HWAINTEK

Product description

Download

Product Features

Intel® 6th/7th/8th/9th Gen Processors with LGA1151
Support for 2 independent displays via dual DP and one VGA port with resolution up to 4K UHD
2 x DDR4 SO-DIMM sockets support up to 32GB memory
6 x Gigabit LAN(5 x Intel i210-AT and 1 x Intel i219-LM)
2 x RS-485, 2 x RS-232
Compact and fanless design

Specifications

Product Parameters
System parameters	CPU	Intel® Core I5-6400/I5-8400/I5-9400/I7-6700/I7-8700/I7-9700
	chipset	H110
	BIOS	AMI 64Mbit UEFI
	memory	2x SODIMM DDR4, MAX 32GB
	storage	1x M.2 M-Key 2280, SATA 3.0; 1 x SATA, support 2.5"SSD/HDD
External I/O	display	2x DP, MAX 4096 x 2304@60Hz; 1x VGA, MAX 1920 x 1080@60Hz; DP+DP/DP+VGA Independent dual display
	Ethernet	1x LAN, Intel® I219LM 5x LAN, Intel® I210AT
	COM	2x RS-232; 2x RS-485
	USB	4x USB3.0; 4x USB2.0
	Audio	1x Line-out, 1x Mic-in, Realtek ALC662
Other	REMOTE	4-pin connector supporting remote switching and indicator lights
Other	RESET	Support BIOS reset by long-pressing the button during shutdown
Internal Expansion	USB	1x USB2.0, Type-A
	miniPCIe	1x miniPCIe, support WLAN/WWAN
	SIM	1x USIM, support 3G/4G
	PCIe	-
	PCI	-
System	OS	Windows 10 IoT LTSC, Linux
Power supply	input voltage	24V DC IN, 3PIN Phoenix
Power supply	power	MAX 120W
Mechanical parameters	installation	wall-mounted installation
	dimensions	220x226x75mm
	net weight	3.4kg
Environmental parameters	operating temperature	0~60°C, with an airflow of 0.7 m/s
	storage temperature	-40°C ~85°C, 60°C @ 95% (non-condensing)
	relative humidity	10 ~ 95% @ 40°C (non-condensing)
	EMC	CE, FCC Class B
