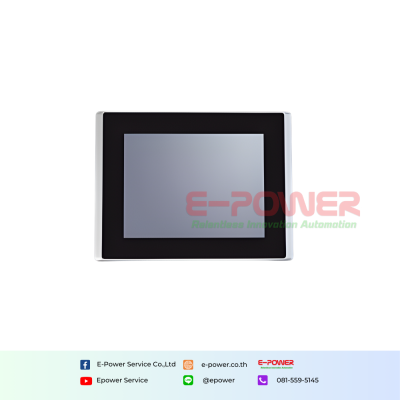

HP11X-AC8 Touch Monitor

Ten-line capacitive multi-touch, surface AG anti-glare treatment. Support USB and serial touch signal input, and serial signal can be transmitted over long distances. Front panel IP65 protection, top rail installation fully enclosed design Touch accuracy can reach 1mm, high sensitivity.

Categories : HWAINTEK , Human-computer interaction , HP Series

Brands :HWAINTEK

Product description

Download

Product Features

8" TFT LCD display with a resolution of 800 x 600
The front panel complies with IP65 protection rating, ensuring stability and robustness
Supports VGA and HDMI interfaces
Capacitive Touchscreen
9~28V power input
Supports panel mount, wall mount, desktop mount or VESA arm mount installation

Specifications

Product Parameters
LCD Screen	screen type	8" TFT-LCD
	resolution	800 x 600
	viewing angle (CR>=10)	-70~70° (H), -50~70° (V)
	maximum color	16.7M
	luminance	250 cd/m2
	contrast ratio	500:1
	backlight type	TFT-LCD
	backlight lifespan	20,000h
Touch Screen	touch type	10-Point Capacitive Touchscreen
	interface type	USB2.0
	transmittance	>85%
	surface hardness	Mohs 7H
Overview	display interface	VGA, HDMI
Overview	size	230.3 x 177.3 x 41.4 mm
System	OS	-
Environmental parameters	operating temperature	-20°C ~ 70°C
	storage temperature	-30°C ~ 80°C
	storage humidity	10 ~ 90% @ 30°C (non-condensing)
	vibration resistance	5~500 Hz, 1Grms (operating, random)
	protection level	The front panel has an IP65 rating
