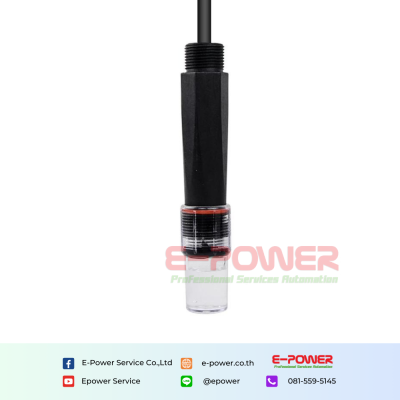

SUP-PH7001 Flat pH sensor for flue gas desulfurization
āļāļģāļāļ§āļ
āļāļģāļāļāļīāļāļēāļĒāļŠāļīāļāļāđāļēāđāļāļāļĒāđāļ
SUP-PH6002 glass pH sensor is widely used in wastewater treatment and fields including mining and smelting, papermaking, paper pulp, textiles, petrochemical industry, process of semiconductor electronic industry and downstream engineering of biotechnology.
āđāļāļĢāļāļāđ: Supmea
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
āļāļēāļ§āļāđāđāļŦāļĨāļ
Characteristics
- Zero potential point: 7 Âą 0.5 pH
- Conversion coefficient: > 96%
- Conversion coefficient: > 96%
- Installation size: 3/4NPT
- Pressure: 1 ~ 6 Bar at 25
- Temperature: 0 ~ 60 for general cables
Specification
| Product | Flat pH sensor |
| Model | SUP-PH6001 |
| Measurement range | 0-14 pH |
| Zero potential point | 7 Âą 0.5 pH |
| Slope | > 96% |
| Internal impedance | 150-250 MÎĐ(25) |
| Practical response time | < 1 min |
| Installation size | Upper and Lower 3/4NPT Pipe Thread |
| NTC | NTC10K/Pt100/Pt1000 |
| Heat resistance | 5-80 for general cables |
| Pressure resistance | 0.2MPa |
| Connection | Low-noise cable |
