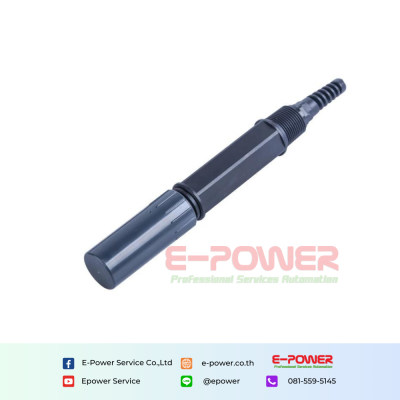

SUP-TDS7002 4 Electrodes conductivity sensor
SUP-TDS-7002 a variety of functions in one: conductivity EC / TDS measurement capabilities to achieve two in one, cost-effective integrated design to support the boiler water, RO water treatment, sewage treatment, pharmaceutical industry and other liquid measurement and monitoring.
āļāļģāļāļ§āļ
āđāļāļĢāļāļāđ :Supmea
Product description
Characteristics
- Range: 10us/cm~500ms/cm
- Resolution: Âą1%FS
- Temp compensation: NTC10K (PT1000, PT100, NTC2.252K optional)
- Temperature range: 0-50 āđC
- Temperature accuracy: Âą3 āđC
Specification
| Product | 4 Electrodes conductivity sensor |
| Model | SUP-TDS7002 |
| Measure range | 10 us/cm~500ms/cm |
| Accuracy | Âą1%FS |
| Thread | NPT3/4 |
| Pressure | 5 bar |
| Material | PBT |
| Temp compensation | NTC10K (PT1000, PT100, NTC2.252K optional) |
| Temperature range | 0-50 āđC |
| Temperature accuracy | Âą3 āđC |
| Ingress protection | IP68 |
EC sensor
Conductivity sensor
4 Electrodes conductivity sensor
SUP-TDS7002
SUP-TDS7002 4 Electrodes conductivity sensor
Supmea
