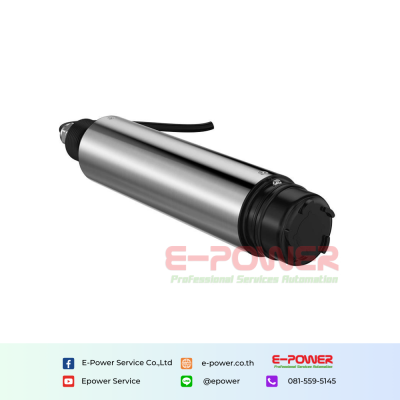

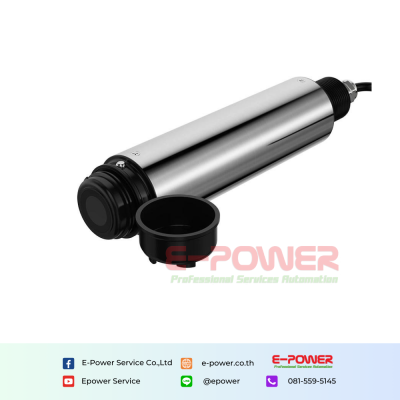

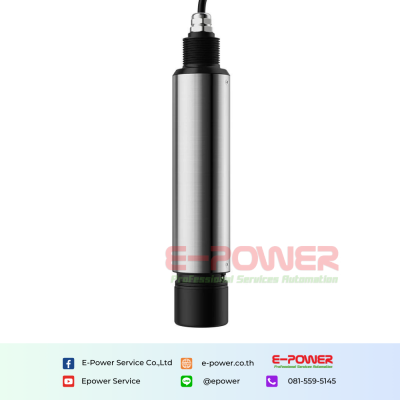

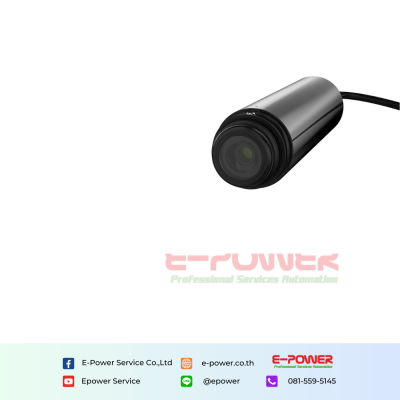

SUP-DO7012 Optical dissolved oxygen sensor

SUP-DO7011 Membrane type dissolved oxygen sensor is the measure of oxygen dissolved in an aqueous solution. Polarographic measurement principle, the dissolution value depends on the temperature of the aqueous solution, pressure and salinity in solution.

āļˆāļģāļ™āļ§āļ™
Product description

Characteristics

  • Range: DOïžš0-20 mg/L、0-20 ppmïž›Temperatureïžš0-45  āđC
  • Resolution: DO:Âą3% of  the measured valueïž›TemperatureïžšÂą0.5  āđC
  • Output signal: 4~20mA
  • Temperature Type: NTC 10k/PT1000

Specification

ProductDissolved oxygen sensor
ModelSUP-DO7012
Measure range0-20mg/L,0-20ppm,0-45deg C
AccuracyResolution:Âą3%, Temperature: Âą0.5  āđC
Pressure range<0.3Mpa
Power supply12 VDC (9~28)VDC
Main materialSUS316L+PVC (Ordinary Version),
Titanium Alloy (Seawater Version)
O-ring:PPS+glass fiber; Cable: PUR
Cable lengthStandard 10-Meter Cable, Max : 100m
Display128 * 64 dot matrix LCD with LED backlight
Power supply12 VDC
CalibrationAutomatic air calibration,Sample calibration
Storage Temperature-15~60  āđC
Operation temperature0~45  āđC
 Weight1.4kg
Ingress protectionIP68/NEMA6P
