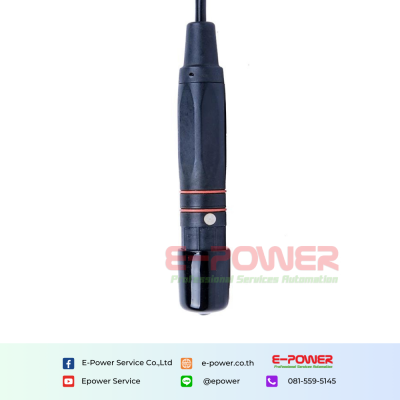

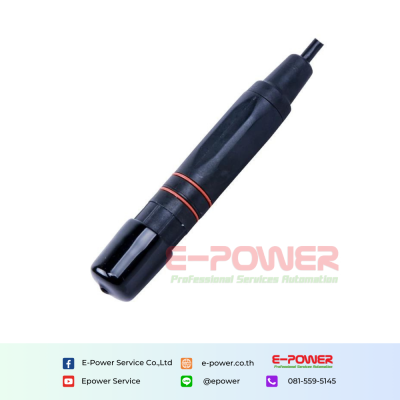

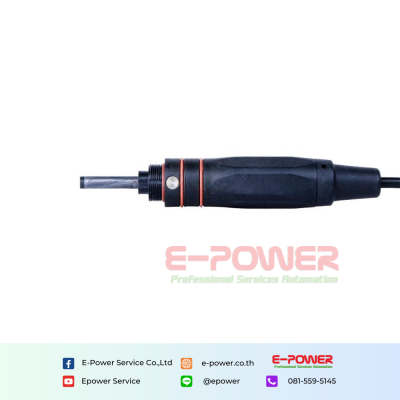

SUP-DO7013 Electrochemical dissolved oxygen sensor

SUP-DO7011 Membrane type dissolved oxygen sensor is the measure of oxygen dissolved in an aqueous solution. Polarographic measurement principle, the dissolution value depends on the temperature of the aqueous solution, pressure and salinity in solution.

āļˆāļģāļ™āļ§āļ™
Product description

Characteristics

  • Range: 0-20mg/L
  • Resolution: 0.01mg/L
  • Output signal: RS485
  • Communication protocol: MODBUS-RTU

Specification

MeasurementDO value in water
Measure range0~40.00mg/l
Resolution0.01mg/l
Temperature range-20~60°C
Type of sensorGalvanic Cell sensor
Measuring accuracy<0.5mg/l
Output modeRS485 port*1
Communication protocolCompatible with standard MODBUS-RTU protocol
Communication modeRS485  9600,8,1,N  (by default)
ID1~255 Default ID 01 (0x01)
Fixing methodRS485 remote setting calibration and parameters
Power supply mode12VDC
Power consumption30 mA @12VDC
