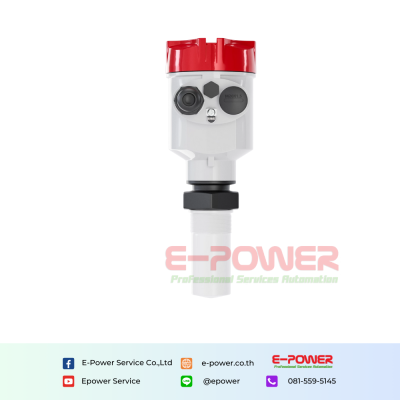

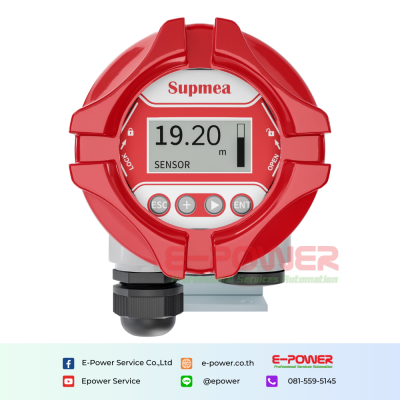

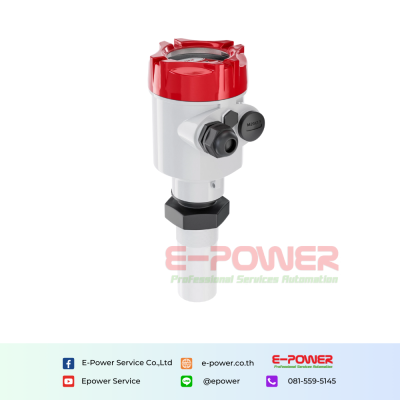

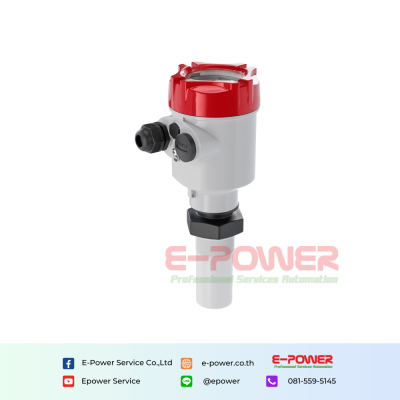

SUP-RD901 Radar level meter for corrosive liquid
SUP-RD901 Non-contact radar with simple commissioning, trouble-free operation saves time and money. PTFE sensor material, for usage in a wide range of applications - be it in simple storage tanks, in corrosive or aggressive media or high accuracy tank gauging applications.
จำนวน
Product description
Characteristics
- Range: 0~10 m
- Application: Corrosive liquid
- Frequency Range: 26GHz
Specification
| Product | Radar level meter | |
| Model | SUP-RD901 | |
| Accuracy | ±5mm(range 5m) ±10mm(range 10m) | |
| Application | Corrosive liquid | |
| Process Connection | Thread, Flange | |
| Medium Temperature | -40°C~130°C | |
| Process Pressure | -0.1~0.3MPa | |
| Protection Grade | IP67 | |
| Frequency Range | 26GHz | |
| Signal Output | 4-20mA RS485/Modbus | |
| Power supply | DC(6~24V)/ Four-wire DC 24V / Two-wire | |
