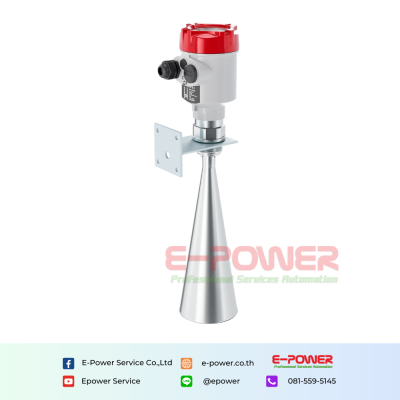

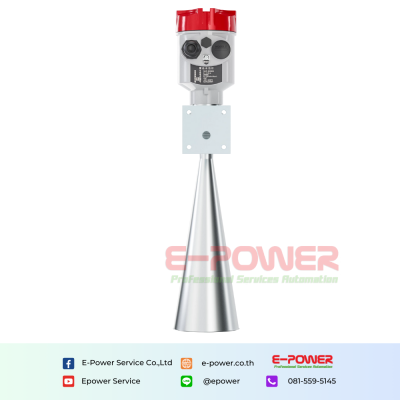

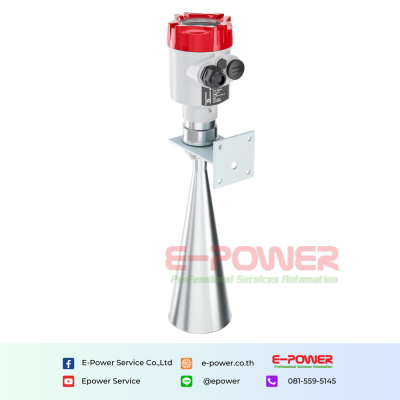

SUP-RD909 70 meters Radar level meter
SUP-RD909 Radar level meter adopts a recommended industry emission frequency of 26GHz, so it has beam angle is small, concentrated energy, has stronger anti-interference ability and greatly improves the precision and reliability of measurement. The measurement range of up to 70 meters, covering a large reservoir water level measurement.
จำนวน
Product description
Characteristics
- Range: 0~70 m
- Accuracy: ±10mm
- Application: Rivers, Lakes, Shoal
- Frequency Range: 26GHz
Specification
| Product | Radar level meter | |
| Model | SUP-RD909 | |
| Measure range | 0-70 meters | |
| Application | Rivers, Lakes, Shoal | |
| Process Connection | Thread G1½ A"/frame /flange | |
| Medium Temperature | -40~100 | |
| Process Pressure | Normal pressure | |
| Accuracy | ±20mm | |
| Protection Grade | IP67 / IP65 | |
| Frequency Range | 26GHz | |
| Signal Output | 4-20mA (Two-wire/Four) RS485/Modbus | |
| Power supply | DC(6~24V)/ Four-wire DC 24V / Two-wire | |
