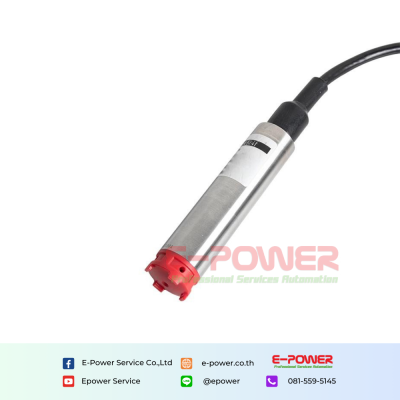

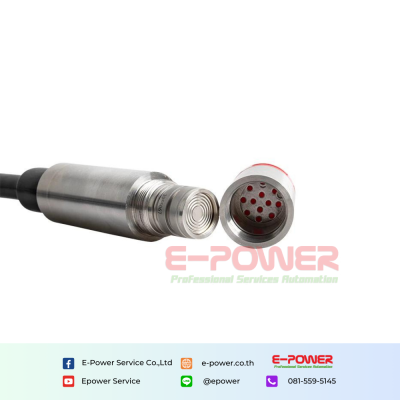

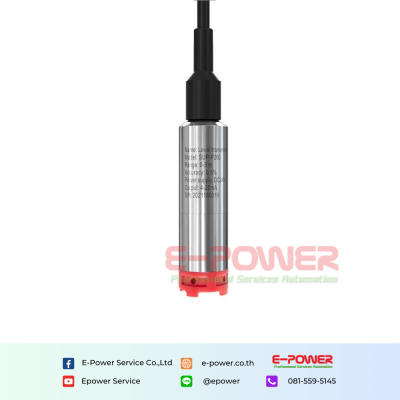

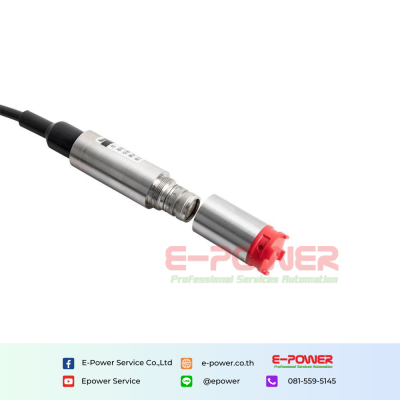

SUP-P260 Submersible level meter
SUP-P260 series submersible level meter are completely sealed for submersion in liquid, can be used to measure water level, well depth, groundwater level and so on type, common accuracy is 0.5%FS,with voltage or 4-20mA output signals
āļāļģāļāļ§āļ
āđāļāļĢāļāļāđ :Supmea
Product description
Characteristics
- Range: 0~0.5m...200m
- Accuracy: 0.5% F.S
- Output signal: 4~20mA; 0~10V; 0~5V
- Power supply: 24VDC; 12VDC
Specification
| Product | Level transmitter | |
| Model | SUP-P260 | |
| Measuring range | 0~1m...200m | |
| Accuracy | 0.5%FS | |
| Pressure type | G(gage pressure) | |
| Compensation temperature | -10~70°C | |
| Medium temperature | -10~65°C | |
| Storage temperature | -20~65°C | |
| Output signal | 4-20mA 1~5V 0~10V 0-5V RS485 | |
| Pressure overload | 150%FS | |
| Stability | Âą0.2%FS/year | |
| Power supply | (4~20)mA output(10~32)v (0~10)V output(12~32)V RS485 output(8~32)V | |
| Ingress protection | IP68(sensor);IP65(2088 wire part) | |
