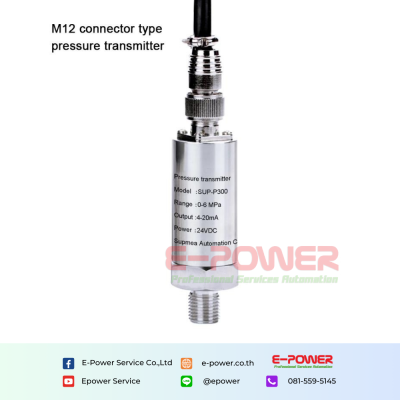

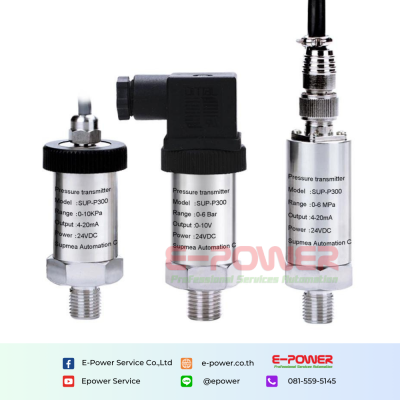

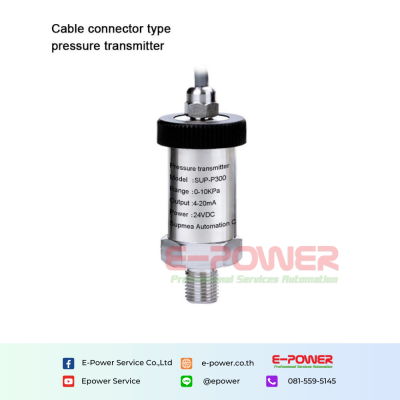

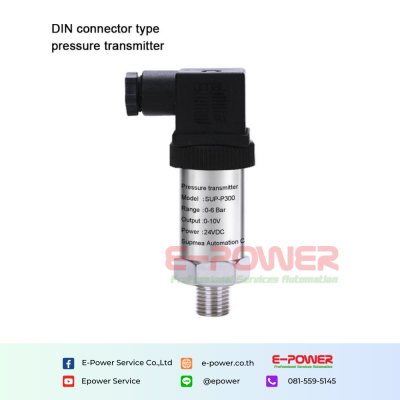

SUP-P300 Pressure transmitter with compact size for universal use

SUP-P300 is a piezoresistive pressure sensor with compact design and stainless steel body SS304 and SS316L diaphragm, can work in the non-causticity environment, with 4-20mA signal output. P300 series is widely applied in pressure measurement for aviation, aerospace, automobile, medical treatment equipment, HVAC etc.

āļˆāļģāļ™āļ§āļ™
Product description

Characteristics

  • Range: -0.1...0...60MPa
  • Resolution: 0.5% F.S; 0.3%F.S optional
  • Output signal: 4...20mA; 1...5V; 0...10V; 0...5V; RS485
  • Installation: Thread
  • Power supply: 24VDC (9 ~ 36V) Â°C

Specification

  Product Pressure transmitter
ModelSUP-P300
Measure range-0.1MPa0~10kPa60Mpa
Pressure typeGauge pressure, Adiabatic pressure, Sealing pressure
Accuracy0.5% F.S; 0.2%F.S,0.25%F.S, optional
Output signal4~20mA; 1~5V; 0~10V; 0~5V; RS485
Temperature compensation-10~70°C
Working temperature-20~85°C
Medium temperature-20~85°C
Storage temperature-40~85°C
Overload pressure0.035~10MPa150%FS, 10~60MPa125%FS
Long-term stabilityÂą 0.2%FS/year
Power supply10~32V (4~20mA); 12~32V (0~10V); 8~32V (RS485, 0~5V, 1~5V)
Ingress protectionIngress protection
