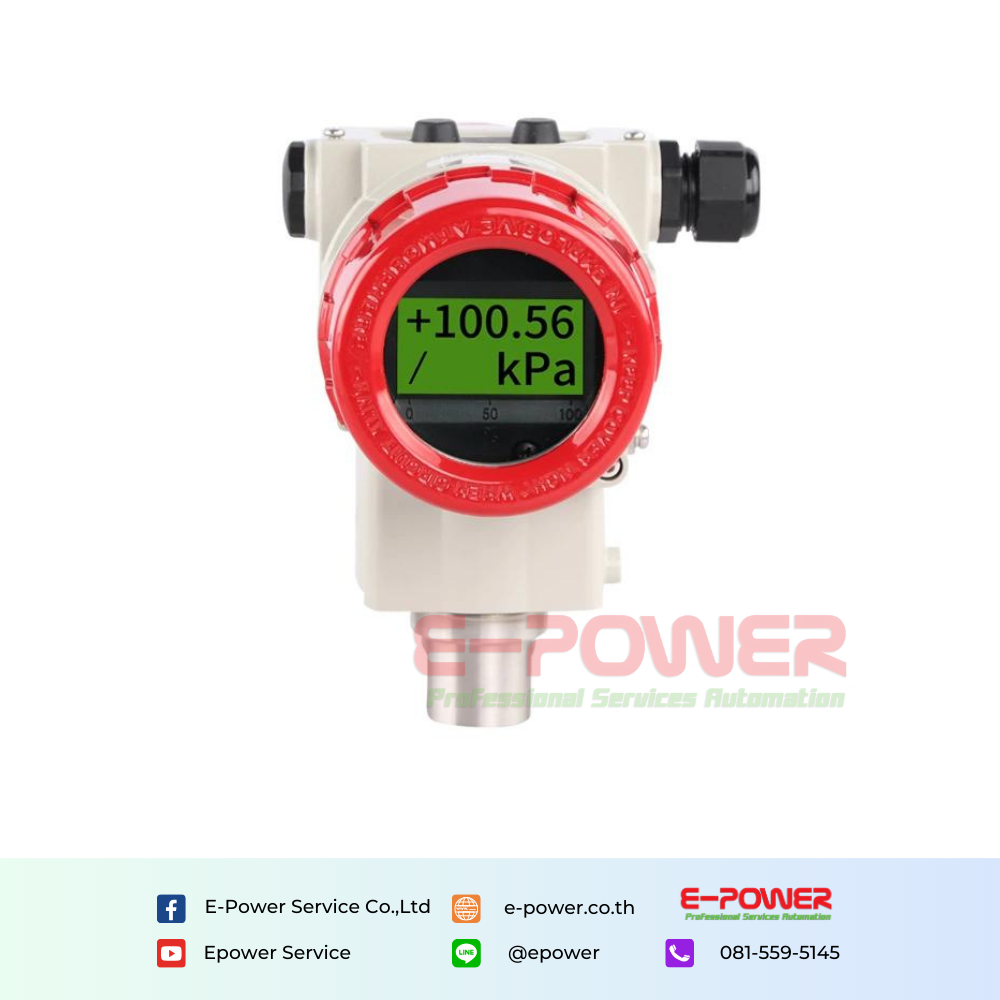

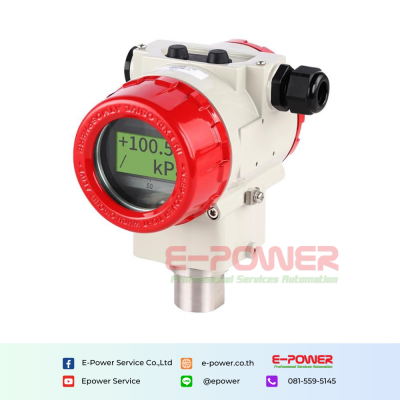

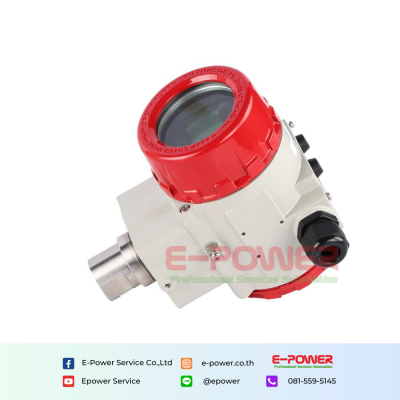

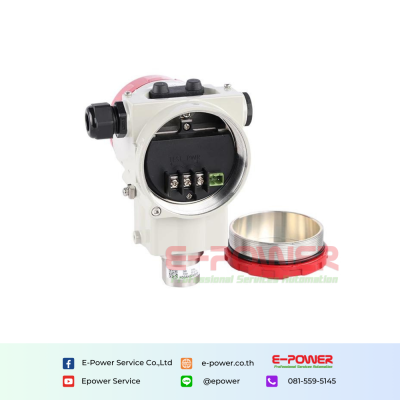

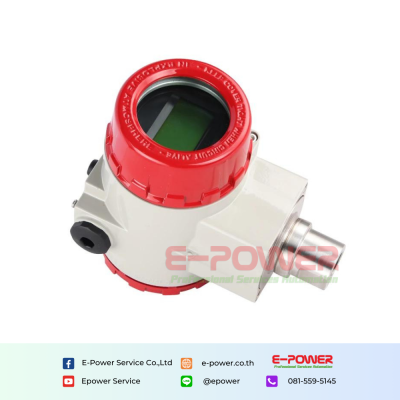

SUP-P3000 Pressure transmitter
SUP-3000 Pressure transmitter uses the unique and proven silicon sensor with state-of-the-art digital processing to provide exceptional performance in terms of accuracy, long term stability and functionalities. -0.1MPa~40MPa full detection range.
จำนวน
Product description
Characteristics
- Range: -0.1~ 0 ~ 60MPa
- Resolution: 0.5% F.S; 0.3%F.S optional
- Output signal: 4~20mA
- Installation: Thread
- Power supply: 24VDC (9 ~ 36V)
Specification
| Product | Pressure transmitter | |
| Model | SUP-PX400 | |
| Measure range | -0.1... 0/0.01... 60Mpa | |
| Pressure type | Gauge pressure, adiabatic pressure and sealed pressure | |
| Accuracy | 0.5% F.S | |
| Output signal | 4~20mA; 1~5V;0~10V; 0~5V; RS485 | |
| Temperature compensation | -10 ~ 70°C | |
| Working temperature | -20 ~ 85°C | |
| Medium temperature | -20 ~ 85°C | |
| Storage temperature | -40 ~ 85°C | |
| Overload pressure | (0.035~10)Mpa (150%FS); (10~60)Mpa (125%FS) | |
| Long-term stability | ± 0.2%FS/year | |
| Ingress protection | IP65 | |
| Power supply | 24VDC | |
