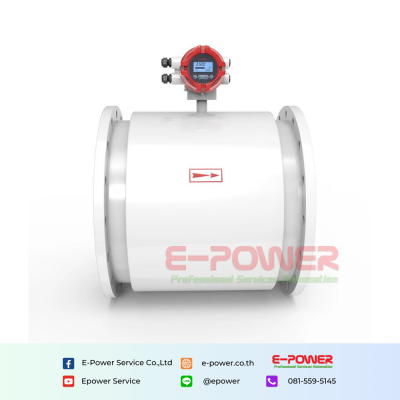

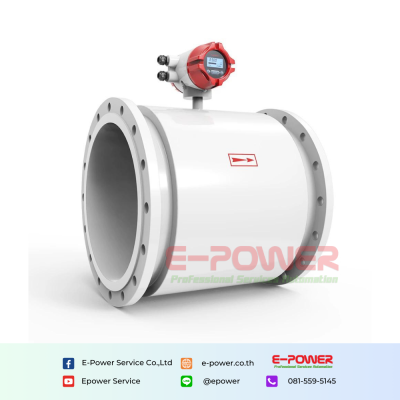

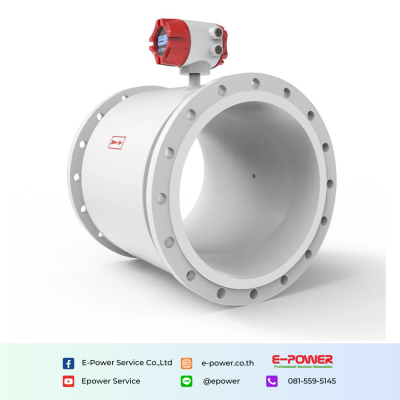

SUP-LDG Carbon steel body electromagnetic flow meter

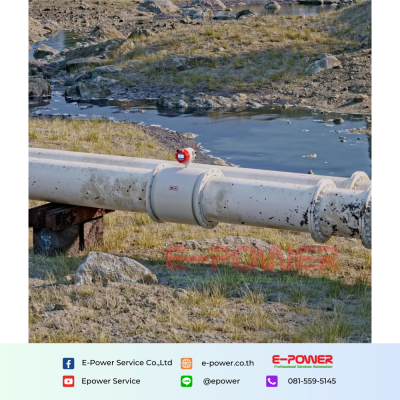

SUP-LDG Electromagnetic meters are a leading choice to deliver the performance and precision your applications require. These meters are applicable for all conductive liquids, such as water, acids, alkalis, slurries and many others. Typical applications are monitoring of liquids, filling, dosing and precise measurement in custody transfer
āļāļģāļāļ§āļ
Product description
Characteristics
- Pipe diameter: DN15~DN1000
- Accuracy: Âą0.5%(Flow speed > 1m/s)
- Theoretical value: Water: Min. 20ΞS/cm; Other liquid: Min. 5ΞS/cm
- Recommended value: ïž30ΞS/cm
- Turndown ratio: 1:100
- Power supply: 100-240VACïž50/60Hz; 22-26VDC
- Minimal Maintainice. Has no moving parts or flow obstructiions, which virtually eliminates maintenance and pressure drops
Specification
| Product | Electromagnetic flow meter | |
| Model | SUP-LDG | |
| Diameter nominal | DN15~DN1200 | |
| Nominal pressure | DN15 - DN250, PN <1.6MPa DN300 - DN1000, PN <1.0MPa DN1200, PN <0.6 MPa Higher pressure can be customized | |
| Accuracy | Âą0.5% F.S. (Flow speed > 1m/s); Âą0.5% F.S.Âą2mm/s (Flow speed <1m/s) | |
| Repetitiveness | 0.16% | |
| Liner material | Neoprene (CR), Polyurethane (PU), PTFE (F4), PFEP (F46), PFA | |
| Electrode material | 316L Stainless Steel, Hastelloy C, Hastelloy B, Ti, Ta, Pt | |
| Medium temperature | Neoprene: -10+60°C Polyurethane: -10+60°C PTFE/FEP: -10+120°C PFA: -10+120°C | |
| Power supply | 85-245VACïž50/60Hz, 22VDC-26VDC | |
| Structure type | Compact type, Remote type | |
| Ingress protection | IP65, IP68(remote type only) | |
| Product standard | JB/T 9248-2015 | |
