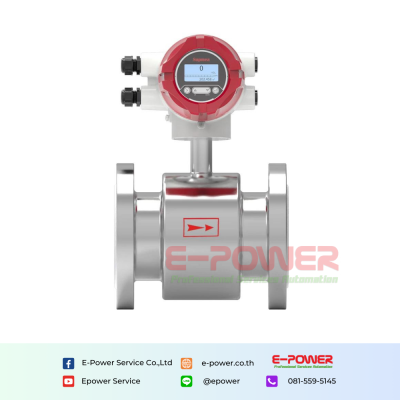

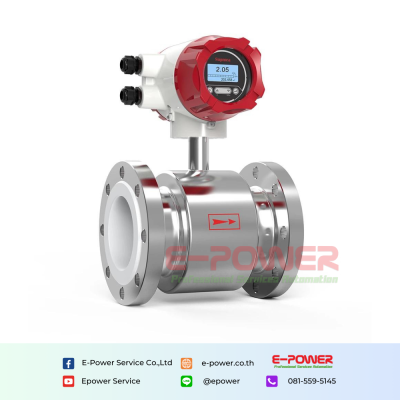

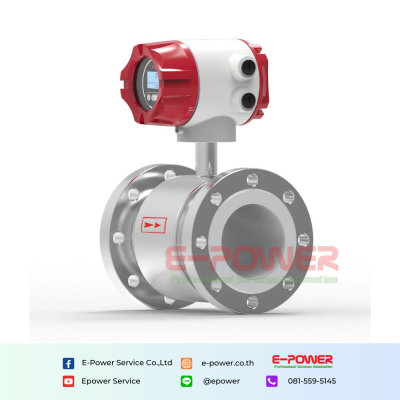

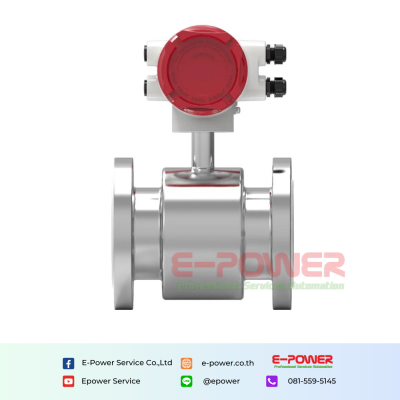

SUP-LDG Stainless steel body electromagnetic flowmeter
Magnetic flow meters operate under the principle of Faraday's Law of Electromagnetic Induction to measure liquid velocity. Following Faraday's Law, magnetic flowmeters measure the velocity of conductive liquids in pipes, such as water, acids, caustic, and slurries. In order of usage, magnetic flowmeter use in water/wastewater industry, chemical, food and beverage, power, pulp and paper, metals and mining, and pharmaceutical application.
āļāļģāļāļ§āļ
Product description
āļāļēāļ§āļāđāđāļŦāļĨāļ
Characteristics
- Accuracy: Âą0.5%ïžÂą2mm/s(flowrate<1m/s)
- Theoretical value: Water: Min. 20ΞS/cm; Other liquid: Min. 5ΞS/cm
- Recommended value: ïž30ΞS/cm
- Flange: ANSI/JIS/DIN DN10600
- Ingress protection: IP65
Specification
| Product | Electromagnetic flow meter | |
| Model | SUP-LDG | |
| Diameter nominal | DN15~DN1000 | |
| Nominal pressure | 0.6~4.0MPa | |
| Accuracy | Âą0.5%ïžÂą2mm/s(flowrate<1m/s) | |
| Liner material | PFA,F46,Neoprene,PTFE,FEP | |
| Electrode material | Stainless steel SUS316L, Hastelloy C, Titanium, | |
| Tantalum Platinum-iridium | ||
| Medium temperature | Integral type: -10°C~80°C | |
| Split type: -25°C~180°C | ||
| Ambient Temperature | -10°C~60°C | |
| Electrical conductivity | Water 20ΞS/cm other medium 5ΞS/cm | |
| Structure type | Tegral type, split type | |
| Ingress protection | IP65 | |
| Product standard | JB/T 9248-1999 Electormagnetic Flowmeter | |
Supmea
Magnetic flowmeter
electromagnetic flow meter
SUP-LDG
Stainless steel body electromagnetic flowmeter
SUP-LDG Stainless steel body electromagnetic flowmeter
