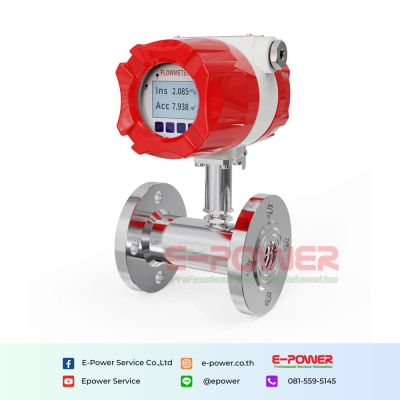

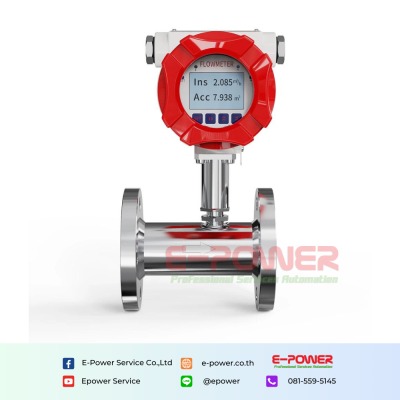

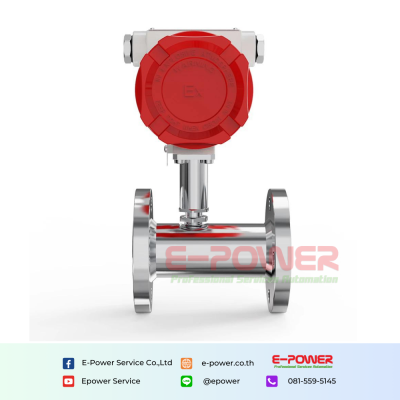

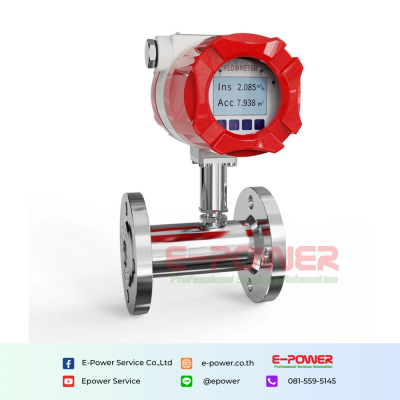

SUP-LWGY Turbine flowmeter flange connection

SUP-LWGY series liquid turbine flowmeter is a kind of speed instrument, which has the advantages of high accuracy, good repeatability, simple structure, small pressure loss and convenient maintenance. It is used to measure the volume flow of low viscosity liquid in closed pipe. In the petroleum, chemical, metallurgy, water supply, paper and other industries with a wide range of applications.

āļˆāļģāļ™āļ§āļ™
Product description
Download

Characteristics

  • Pipe diameter: DN4~DN200
  • Accuracy: 0.5%R, 1.0%R
  • Power supply:  3.6V lithium battery; 12VDC; 24VDC
  • Ingress protection: IP65 (IP67, IP68 protocol supply, pulse converter probe IP00)

Specification

ProductTurbine flowmeter
ModelSUP-LWGY
Diameter NominalDN4~DN200
Atmospheric Pressure86kPa ~ 106kPa
Accuracy0.5%R, 1.0%R
Medium viscosityLess than 5×10-6m2/s
(for the liquid with >5×10-6m2/s,
the flowermeter needs to be calibrated before using)
Medium Temperature-20°C ~ + 120°C
Power Supply3.6V lithium battery; 220VAC; 24VDC
Output SignalPulse, 4-20mA, Modbus, Hart
Ingress protectionIP65 (IP67, IP68 protocol supply, pulse converter probe IP00)
