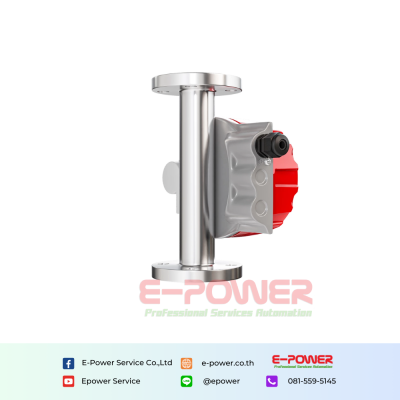

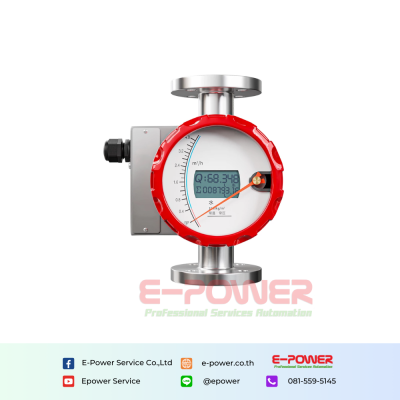

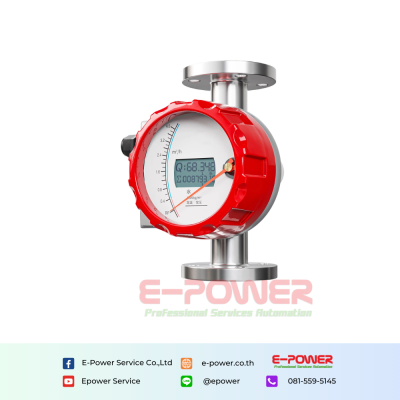

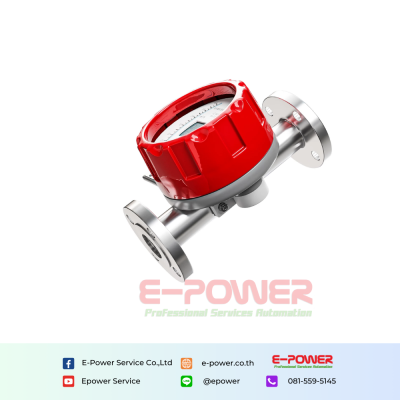

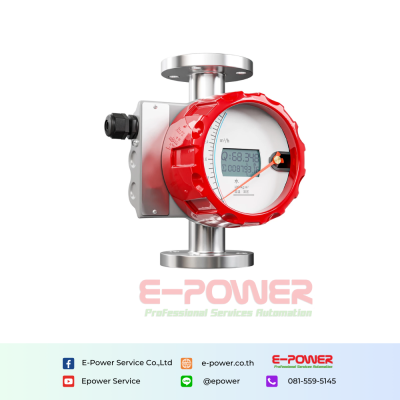

SUP-LZ Metal tube rotameter

SUP-LZ Metal Tube Rotameter is a device that measures the volumetric flow rate of fluid in a closed tube. It belongs to a class of meters called variable-area flowmeters, which measure flow rate by allowing the cross-sectional area the fluid travels through to vary, causing a measurable effect.

āļˆāļģāļ™āļ§āļ™
Product description
Download

Characteristics

  • Ingress protection: IP65
    Range ratio: Standard: 10:1
    Pressure: Standard: DN15~DN504.0MPa, DN80~DN4001.6MPa
    Connection: Flange, Clamp, Thread

Specification

ProductMetal Tube Rotameter
ModelSUP-LZ
RangeWater (20°C) (01~200000) L/h Air (20,0.1013MPa) (0.05~2000) mÂģ/h
Range ratioStandard 10:1    Optional 20:1
AccuracyStandard type: Liquid: 1.5%    Gas: 2.5%

Customized type: Liquid: 1.0%    Gas: 1.5%
Pressurestandard: DN15~DN504.0MPa DN65~DN2001.6MPa

high pressure type: -80 °C ~ 200 °C,DN15~DN10010MPaïž› 200 °C ~ 350 °C,DN80~DN2006.3MPa
ConnectionFlange, Clamp, Thread, Sanity thread
Medium temperatureStandard: -20°C~120°C PTFE -40°C~80°C High temp: 120°C~450°C low temp: -80°C~-20°C
Environment temperatureRemote type: -40°C~70°C Pointer type/local alarm type -40°C~80°C
Power supplyStandard type: 24VDC two-wire system (4-20) mA (12VDC~32VDC) Alarm type: 24VDC multi-wire system (4-20) mA (12VDC~32VDC) AC type: (100~240) VAC 50Hz~60Hz Battery type: 3.6V@9AH lithium battery
Load resistanceRLmax: 600ÎĐ
Alarm OutputInstantaneous flow alarm for upper and lower limits, optocoupler-isolated Darlington output (internal 24VDC supply, max 8mA, external supply up to 250mA@ 36VDC
Local alarm type: upper limit, lower limit, or both upper and lower limit instantaneous flow alarms, reed switch contact output (contacting rate1A @ 30VDC) Optional normally open/closed contacts.
Alarm holding range: Max 60% range of the full span, Min. Interval between upper and lower limit alarm: 10% of full scale
Pulse outputCumulative pulse output is output of optocoupler signal isolation Darlington tube (internal 24VDC power supply, maximum current
8mA)
Ingress protectionIP65
