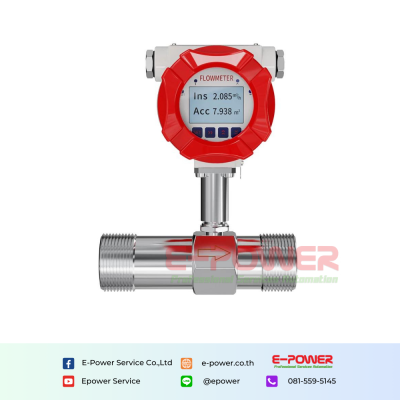

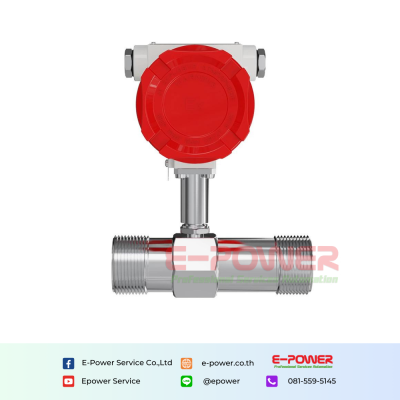

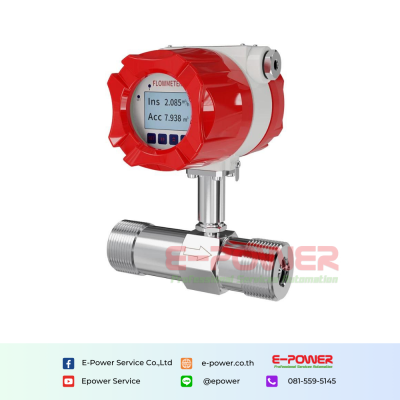

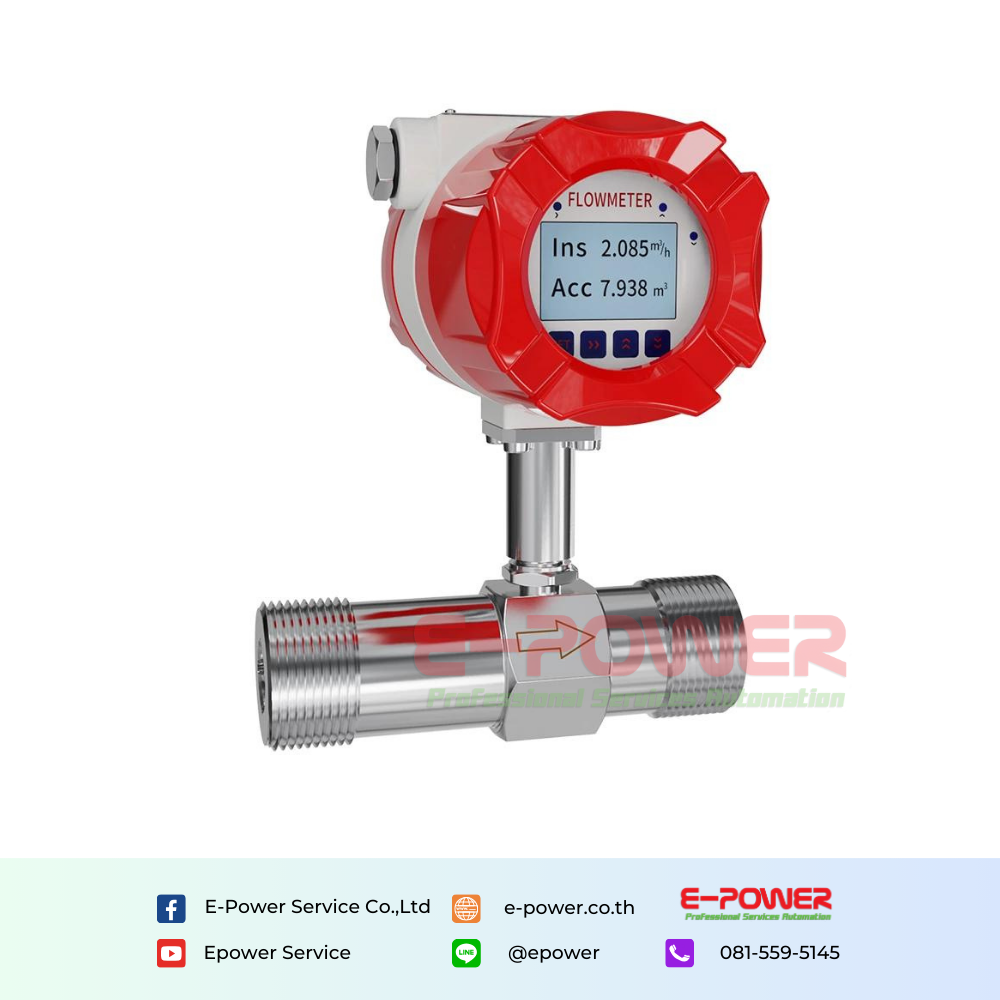

SUP-LWGY Turbine flowmeter thread connection
SUP-LWGY series liquid turbine flowmeter is a kind of speed instrument, which has the advantages of high accuracy, good repeatability, simple structure, small pressure loss and convenient maintenance. It is used to measure the volume flow of low viscosity liquid in closed pipe. Threaded type, simple to install and maintain, usually used for small diameter flow measurements: Male:DN4~DN100; female:DN15~DN50
จำนวน
Product description
Download
Characteristics
- Pipe diameter: DN4~DN100
- Accuracy: 0.5% 1.0%
- Power supply: 3.6V lithium battery; 220VAC; 24VDC
- Ingress protection: IP65
Specification
| Product | Turbine flowmeter |
|---|---|
| Model | SUP-LWGY |
| Diameter Nominal | DN4~DN100 |
| Nominal Pressure | 86kPa ~ 106kPa |
| Accuracy | 0.5%R, 1.0%R |
| Medium viscosity | Less than 5×10-6m2/s for the liquid with >5×10-6m2/s, the flowermeter needs to be calibrated before using |
| Medium Temperature | -20°C ~ + 120°C |
| Power Supply | 3.6V lithium battery; 220VAC; 24VDC |
| Output Signal | Pulse, 4-20mA, Modbus, Hart |
| Ingress protection | IP65 (IP67, IP68 protocol supply, pulse converter probe IP00) |
