DM104B-Industrial Open frame Touch Monitor 4:3 PC(X86)
จำนวน
รายละเอียดสินค้า
Capacitive Touch Screen All In One PC(X86)
(Model No. : DM104B)
Key Features:
- 10.4 inch 4:3 square screen
- Industrial Touch screen display

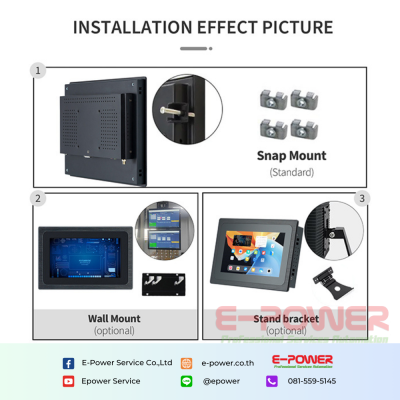

- easy to embedded with snaps
- The specifications can be viewed on Rescources below
Display&Touch
| Panel type | A-Si TFT-LCD, WLED backlight(A type) |
| Size | 10.4 inch (4:3) |
| Display area | 212.5（W）* 160（H）mm |
| Package Dimension | 40*28.3*10.6cm |
| Resolution | 1024*768 |
| Brightness | >250cd/m2 |

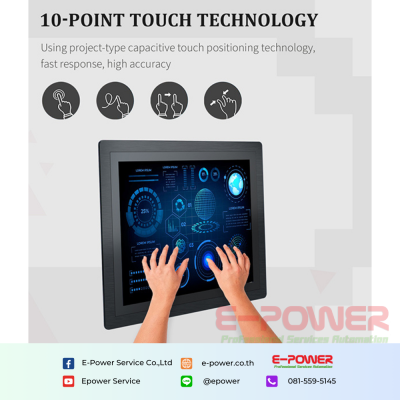

| Touch Screen | PCAP 10 points touch |
| Size and Weight | N.W 1.7 KG G.W 2.2 KG |
Electrical Performance
| X86 consumption | <36 W |
Working Environment
| Operating temperature | 0°C-50°C |
| Operating humidity | 10%- 80% |
| Storage temperature | -5°C-60°C |
| Storage humidity | 10%- 70% |
Configuration
| Chip | Celeron N5095/N5105(Fanless; High Performance) Celeron J1900(Fanless) Core i5 4th/5th Gen |
| RAM | 4G/8G/16G |
| Storage | 32G/64G/128G/256G/512G(SSD) |
| GPU | Core Graphics |
| OS | Win 7//Win 10/ Linux |
| Speaker power | 8Ω3w |
| Network | 10/100/1000M adaptive network card Wireless network card 802.11 a/b/g/n (ac 5Goptional) |

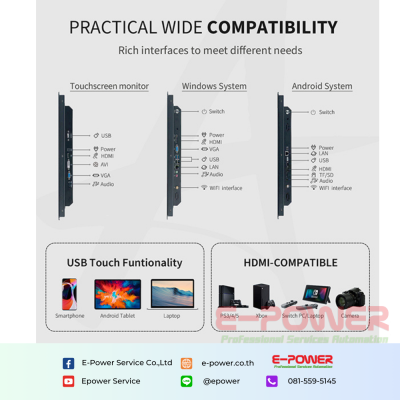

Interface - X86 PC
| HDMI | *1 |
| VGA | *1 |
| USB 3.0 | *2 |
| AudioI/O | *1 |
| RJ45 LAN | *1 |
| LAN USB 2.0 | *2 |
| 232/485 | Optional |
Capacitive Touch Screen
DM104B-Industrial Open frame Touch Monitor 4:3
DM104B
Capacitive Touch Screen All In One PC(X86)
